30 Inch Stainless Steel Bag Filter Housing – High-Capacity Industrial Liquid Filtration System

30 Inch Stainless Steel Bag Filter Housing – High-Capacity Industrial Liquid Filtration System

1 1

Only 10 left in stock!

30 Inch Stainless Steel Bag Filter Housing – High-Capacity Industrial Liquid Filtration System

30 Inch Stainless Steel Bag Filter Housing – High-Capacity Industrial Liquid Filtration System

Rs. 30,000.00
Sale price Rs. 30,000.00 (Save Rs. -30,000.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

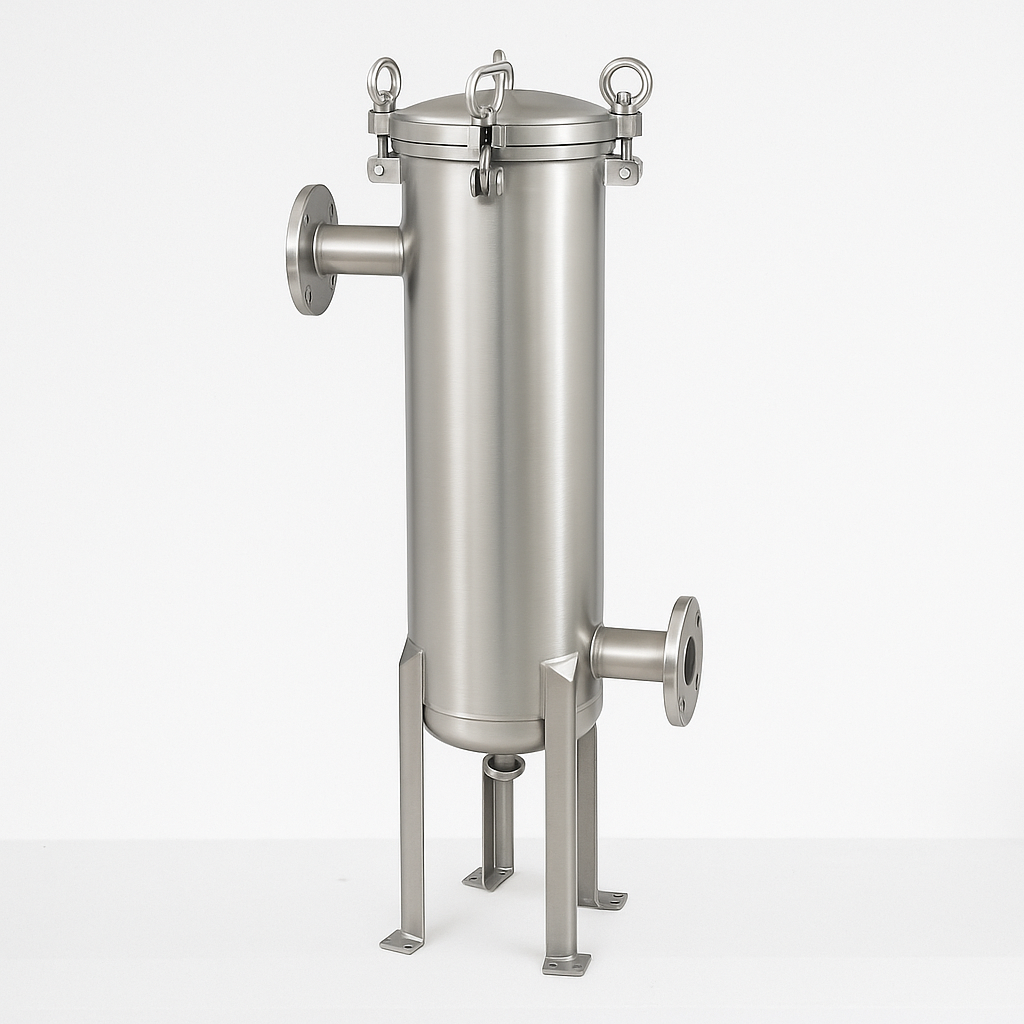

Our 30 Inch Bag Type Stainless Steel Filter Housing is designed for high-volume liquid filtration in industrial and commercial settings. Built with robust SS304 or SS316 stainless steel, this housing ensures superior corrosion resistance, longevity, and safety for your critical filtration processes.

Key features

    • 🛡️ Heavy-Duty Stainless Steel Body: Constructed with SS304/SS316 for enhanced corrosion resistance and durability.
    • 📏 30” Length Design: Suitable for #2 size standard filter bags, maximizing surface area and flow capacity.
    • 🔧 Tool-Free Operation: Swing bolt or clamp closure for easy opening and bag replacement.
    • 🚿 High Flow Rates: Supports large volume filtration applications with minimal pressure drop.
    • 🏭 Industrial-Grade Sealing: Ensures leak-proof operation with Buna-N, EPDM, or Viton gaskets.
    • ⚙️ Versatile Inlet/Outlet Options: 2” or 3” BSP/NPT/Flanged ports available to suit diverse piping needs.
  • 🔩 Material: SS304 / SS316 Stainless Steel
  • 📐 Bag Size: #2 (7” diameter x 32” length)
  • 💧 Flow Rate: Up to 40 m³/hr (Depending on fluid & filter media)
  • 🔗 Inlet/Outlet Connections: 2” / 3” BSP/NPT/Flanged
  • 🌡️ Operating Temperature: Up to 120°C (SS304) / 150°C (SS316)
  • 💥 Operating Pressure: Up to 10 bar / 150 psi
  • 📏 Total Height: ~1000 mm (Approx.)
  • ⚖️ Weight: 25–35 kg (Varies with configuration)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • 📦 Please inspect packaging for visible damage upon delivery
  • 🔍 Verify inlet/outlet sizes and bag fit before use
  • 📞 Contact support immediately for transit-related damage
  • 🔐 Keep housing sealed until ready for installation to prevent contamination
1. What type of bags can I use?
Compatible with #2 size standard liquid filter bags (7” x 32”), made of PP, PE, or nylon mesh.
2. Can I get flanged connections instead of threaded?
Yes, we offer BSP/NPT threaded or ANSI/DIN flanged options upon request.
3. What is the cleaning frequency?
Depends on the application, but filter bags should typically be changed after each filtration cycle or when pressure drop exceeds 1.5 bar.
4. Is the unit pressure tested?
Yes, every housing is hydro-tested up to 1.5 times its rated pressure before dispatch.
5. Do you provide installation support?
Installation is straightforward; however, we offer video and remote support if required.
  • 🧳 Packaging Type: Wrapped with protective film and packed in wooden crate
  • 📏 Dimensions: Approx. 1100 mm x 300 mm x 300 mm
  • ⚖️ Gross Weight: Approx. 40–45 kg
  • 🚛 Dispatch Time: Within 2–5 business days after order confirmation
  • 📦 Please inspect packaging for visible damage upon delivery
  • 🔍 Verify inlet/outlet sizes and bag fit before use
  • 📞 Contact support immediately for transit-related damage
  • 🔐 Keep housing sealed until ready for installation to prevent contamination
  • 🧯 Do not open the lid while under pressure
  • ☣️ Wear gloves, mask, and eye protection during cleaning or bag replacement
  • 💡 Ensure proper grounding in electrically sensitive environments
  • 🔥 Avoid exposure to flammable solvents near heat or open flame
  • 🔄 Bag Replacement: Replace filter bags as per contamination levels; usually after every cycle or pressure drop indication
  • 🧽 Cleaning: Clean with mild detergent and water; avoid strong acids unless using SS316 variant
  • 🛠️ Periodic Checks: Inspect gaskets, clamp bolts, and lid seal integrity every 3–6 months
  • 📝 Warranty: 1-Year Limited Warranty on manufacturing defects
  • 🏭 Industrial water treatment & RO pre-filtration
  • 🥤 Food & Beverage production lines
  • 🧼 Paints, inks, and dye filtration
  • 🧪 Chemical and solvent filtration
  • 🛢️ Oil & petrochemical product filtration
  • 👕 Textile effluent & dye water filtration
