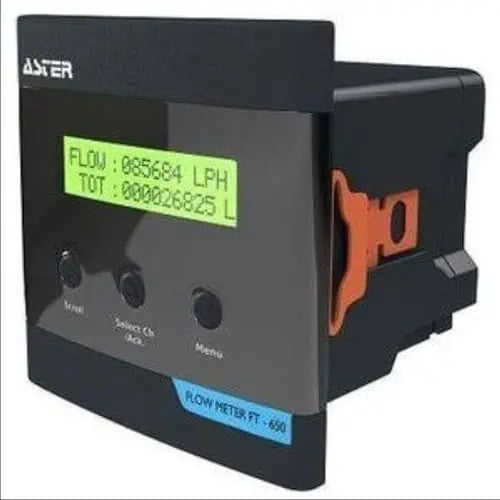

DescriptionOur digital flow meter necessarily has a flow sensor with a magnetic multi-bladed spinning rotor (impeller) mounted inside at right angles to the flow. The rotational speed of the impeller is proportional to the velocity of fluid.The pulse generated is transmitted and converted into a volumetric measurement. Our digital flow meters are individually calibrated to give reliable flow measurement.Key Features:INEXPENSIVE & ACCURATEAll PLASTIC wetted partsEASY TO INSTALL AND MAINTAINHIGH AMPLITUDE OUTPUT signal from sensor eliminates needs of retransmission upto 100 meters.CERAMIC BEARING for superior low flow performanceThreaded housing allows FIELD MAINTENANCEThis meter can act as:BATCHER & TOTALISERRelay gets energized after a fixed quantity of water passes through the sensor. The batcher has an auto reset, manual reset and dual relay operation facility. Batch quantity counts downwards till zero valueFLOW COMPARATORThe meter is supplied with two sensors for RO permeate and inlet/ reject line. The meter displays both the flow rates and also calculates percentage recovery.The setting is done on PERCENTAGE RECOVERYIf plant recovery is increased by the client to get more permeate, plant will trip thereby safeguarding expensive membranesRATE SWITCH MODEThe relay is programmed to energize whenever actual Flow falls below the set value.Display shows ‘LOW FLOW RATE’PULSERMeter can be configured to suit any metering/dosing pump Chemical dosing can be done online proportional to flow.DESCRIPTIONSPECIFICATIONTypeFull Bore TurbineFluidWaterS.G.Of Medium1HousingGF NylonImpellerPPBearingCeramicPin / ShaftCarbideSensing ElementHall Effect I.CAccuracy±2% Of Full ScaleMaximum Temp60° CMaximum Pressure5.0 kg/cm2Pressure Drop0.3 Kg/cm2at Max.flowApplications:1)  RO  Plant2) ETP3) STP4) Tanker management  System5) Batching Operations6) Water  Distribution Systems
