DescriptionSalient FeaturesRO panel designed by using micro controllers to provides advanced intelligence solutions for water industry.3 Phase (RYB) Voltage monitoring, Display & Protects from Un-Balance AC Voltages.Features4 line LCD to show all plant information on the site.Two flow sensors can be connected; it will show the Treated & Reject water flow in the display.All flow sensors automatically pulse setting based on RO plant capacity.Auto & Manual setting of RAW Water & High Pressure Pump.AC Low and High Voltage protection to prevent pumps damage.Auto Flushing/flush cycle setting.Floats for Raw Water Tank, Dosing Tank & Treated/Pure Water Tank.Low Pressure & High pressure Switches.TDS & Conductivity.All type / Mfr’s of Auto Multi Port Valves can be connected.RO panel provide supply and control the UV, SV & Dosing Pump.8 LED indications to show the Power ON, Raw Water Tank Empty, Auto Flush, RWP ON,HPP ON, TWT Full, LPS & HPS Failed.Password protection to prevent un-authorized changes at plant level.RO panel having default factory settings option.If any electronics PCB’s failed in the control panel, still RO plant runs in manual mode.GSM Features4 line LCD to show all plant information on the site.GSM based-Real time data & the fault reason will be transfer to web, Android APP and two mobile phones.Through App and Mobile phone, RO plant can be controlled for all its functions.Parameter- Sent after set interval of timeUnit NOToday’s RO-LTRSRO Water & Reject water Flow RateRO Work HourVoltageRaw Water Pump & High Pressure Pump AMPSTDSGSM SignalFaults/Alerts- Sent immediatelyVoltage(Under or Over) TripLow Pressure TripHigh Pressure TripTreated Water Tank FullDosing Tank EmptyRWP OverloadHPP Overload

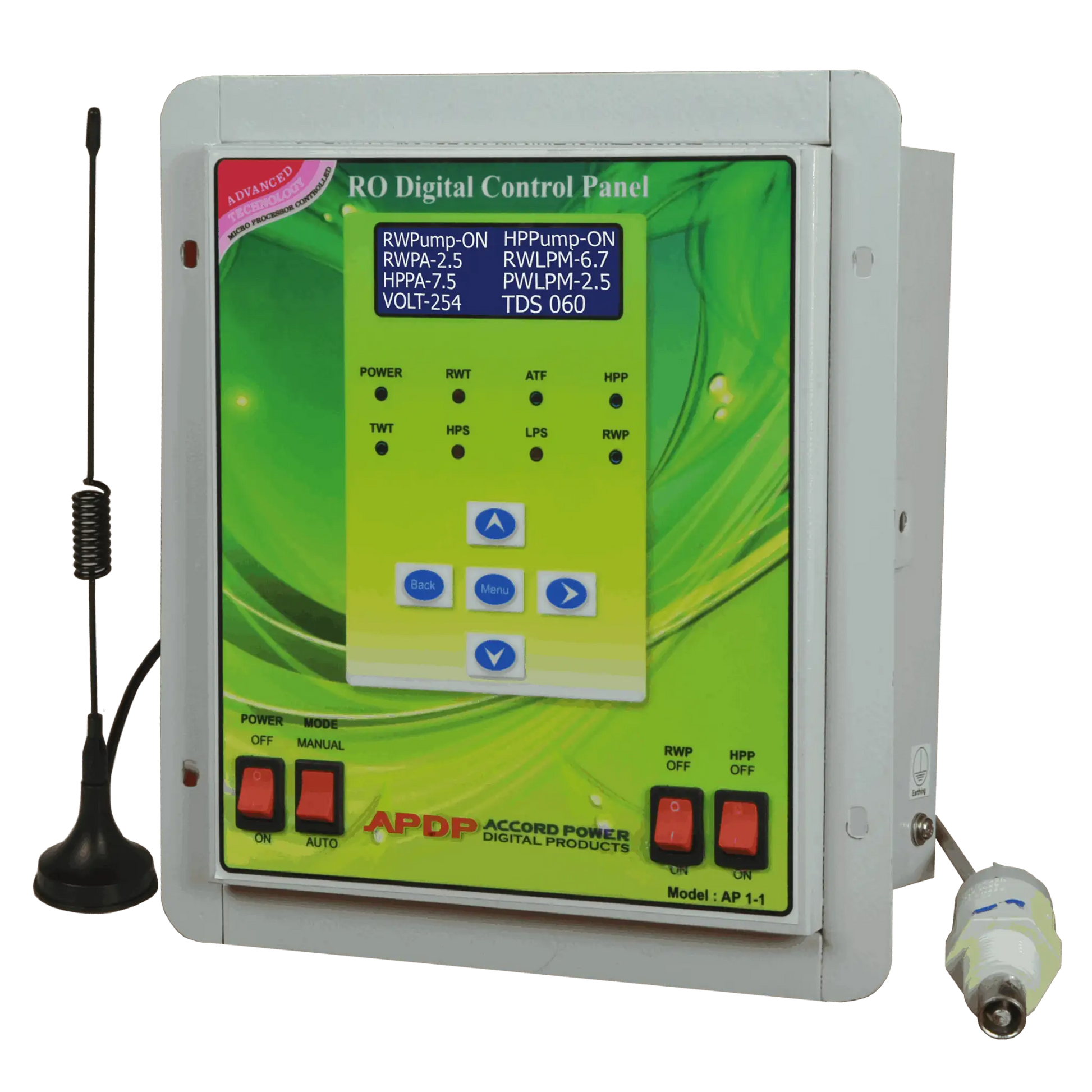

Product: Automatic RO Controller
Brand: Accord [APDP]
Model: AP 3:3 GSM
Raw Water Pump: up to 5 HP
High Pressure Pump: up to 5 HP
PROTECTION CONNECTION: LPS, HPS, Float’s in TWT, RWT & Dosing Tank, Auto multi-port valve
Connections: Raw water pump, High pressure pump, Dosing pump, Flushing SV, UV.
Warranty: One Year Against Manufacturing Defects
