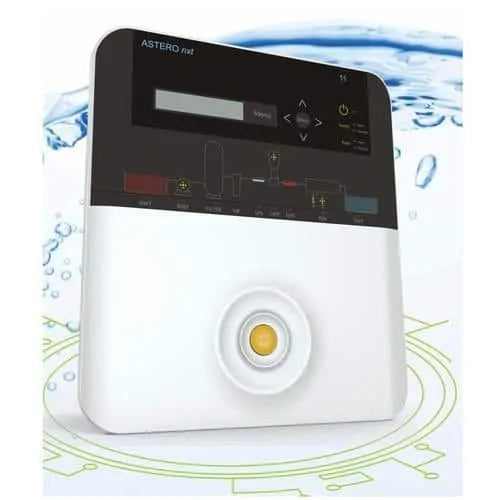

DescriptionAstero Ro Control Panel NXT:Compact Micro-processor based Plug & Play control panels with plant operation programmed and all safeties inbuilt. These panels along with the required level, pressure, conductivity and flow sensors help in making the entire plant completely automatic.FeaturesComplete RO logic preprogrammedMimic diagram with 6 LEDs for I/O indication16 X 2 Alphanumeric LCD display with keypad for programmingNotification for filter backwash and plant service due based on real time operationComplete RO logic preprogrammedTime settable lockAutomatically flushes the membrane during Starting, Stopping & after a set intervalAvoids unnecessary chattering of HPP due to initial dipping in suction pressureTakes care of required motor protection such as overload, single phasing, dry runningAuto/manual facility(even in MANUAL mode motor protection doesn′t get bypassed)In built Flow rate indicator with TotaliserIn built operation hour counterIn built Conductivity/TDS indicator with tripping facility @high conductivity/TDSAlso equipped to suit Auto multiport valve in pretreatmentPassword protected settingsControl Panel comes with in built modem to transfer data through SMS.The modem is configured to suit SIM card of any Telecom Service Provider.It will send plant status and trip alerts to maximum 3 mobile numbers.The SMS frequency and mobile numbers are user settable.This modem will send plant status with following parameters.PARAMETERSPanel will send below parameter in plant status message.• Conductivity/TDS• RO Permeate Volume• RO Operation Hour• High Pressure Pump CurrentFAULTS/ALERTS• RO Permeate Flow Rate • RO Inlet Flow Rate• Feed Pump Current• Plant StatusPanel will trip the plant if below faults occur and send alert message to user• Conductivity/TDS high• Low Pressure trip• Treated Water Tank full• RWP dry running,Single phasing,Overload• Voltage(under or over) trip • High Pressure• Dosing tank Level low• HPP dry running,Single phasing,OverloadUser gets real time information about plant status & parameter with site name in above format frequently. This frequency is settable by user through SMS

Input Voltage:: 230 VAC
Output for RWP: Single Phase -1.5 KW
Output for HPP: Three Phase - 4 KW
