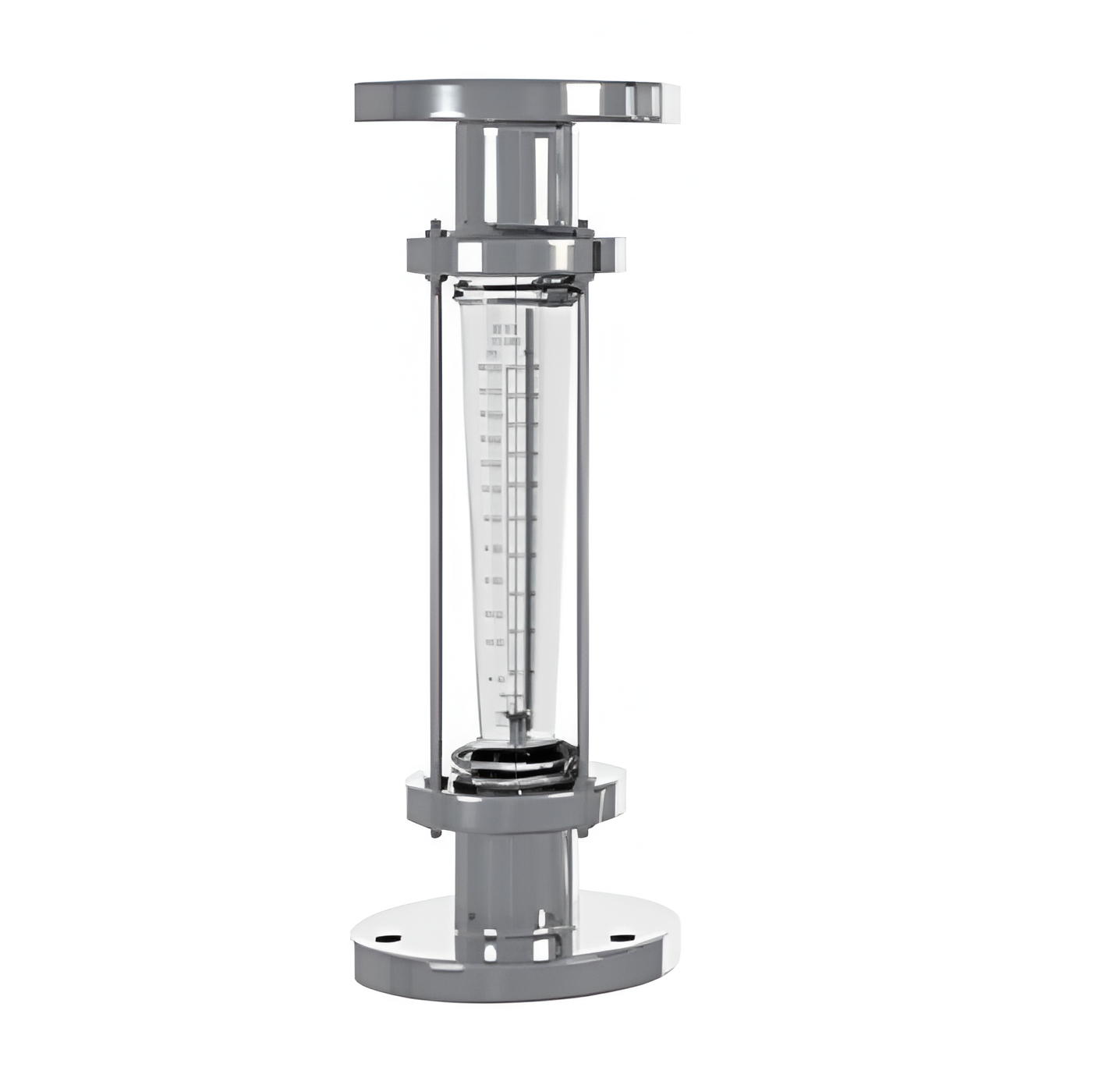

Aster Rotameter – 100–1200 LPH – 25 NB – SS316 Flanged

Aster Rotameter – 100–1200 LPH – 25 NB – SS316 Flanged

1 1

Aster Rotameter – 100–1200 LPH – 25 NB – SS316 Flanged

Aster Rotameter – 100–1200 LPH – 25 NB – SS316 Flanged

Rs. 10,899.00
Sale price Rs. 10,899.00 Rs. 11,999.00 (Save Rs. 1,100.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

The Aster Rotameter – 100–1200 LPH – 25 NB – SS316 Flanged is a compact, high-precision flow meter designed for demanding chemical, pharmaceutical, and industrial water applications. Constructed with durable SS316 flanged ends, this model is ideal for systems where corrosion resistance, pressure durability, and long service life are essential.

With a clear polycarbonate flow tube, SS316 float, and flanged metal ends, this model supports vertical online mounting (bottom inlet, top outlet) and is factory-calibrated for water (SG = 1). It is ideal for chemical dosing skids, softener inlet/outlet lines, and lab-scale process monitoring.

If you need rugged build quality and reliable low-flow monitoring in corrosive or high-pressure environments, the F1200 O with SS316 flanged ends is a proven performer.

  • Compact flow range up to 1200 LPH
  • SS316 flanged ends for chemical compatibility and strength
  • Crystal-clear tube with smooth float travel

Key features

    • Fluid: Water or compatible chemicals
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 25 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F1200 O
  • Flow Range: 100–1200 LPH
  • Least Count: 100 LPH
  • Nozzle Size: 25 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 114.3 × 82.6 × 300 mm
  • Distance Between Flanges (A): 50.5 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatch within 2 working days of confirmed order
  • Available via courier and freight options
  • Pallet packing for bulk dispatches
  • Q1: Is this rotameter suitable for acid dosing lines?
    A: Yes, SS316 construction makes it suitable for many corrosive chemicals. Always confirm material compatibility for your specific media.
  • Q2: Can this model be used with hot water?
    A: Yes, up to 70°C. It offers higher temperature tolerance than PP models.
  • Q3: What is the pressure limit?
    A: It can handle up to 6 kg/cm² with proper gasket and flange fittings.
  • Q4: Can this be installed outdoors?
    A: Yes, though UV shielding is recommended to protect the transparent body.
  • Individually packed with foam lining in corrugated boxes
  • Clearly labeled with model, range, and flange material
  • Test certificate available on request
  • Dispatch within 2 working days of confirmed order
  • Available via courier and freight options
  • Pallet packing for bulk dispatches
  • Install vertically with upward flow direction only
  • Use proper flange gaskets to prevent leakage
  • Do not exceed rated pressure/temperature

Flush monthly with clean water. For scaling or sediment, remove and gently rinse using compatible cleaning agents. Avoid using acids or abrasives on the polycarbonate body.

  • Acid/alkali dosing lines in process industries
  • Softener outlet/inlet monitoring
  • DM/RO plant skids
  • Pharmaceutical and laboratory pipelines
