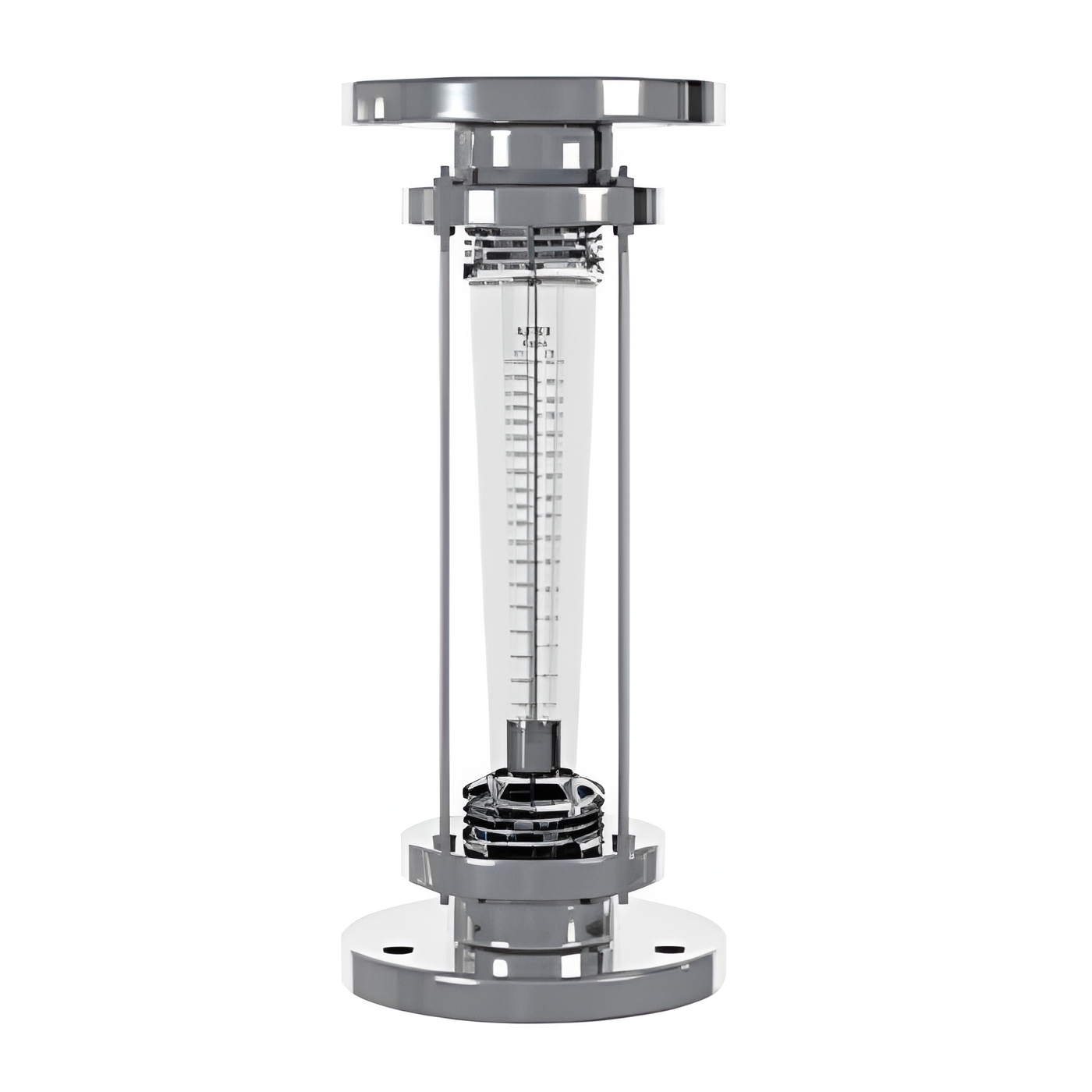

The Aster Rotameter – 1000–9000 LPH – 40 NB – SS316 Flanged is a highly reliable mid-capacity rotameter engineered for industrial and commercial water treatment systems. It offers precise flow monitoring in applications such as RO plant feeds, industrial effluent return lines, and high-flow process cooling systems.

Fitted with corrosion-resistant SS316 flanged ends and a precision-balanced SS316 float, this model ensures long-lasting performance in both neutral and slightly corrosive environments. The crystal-clear polycarbonate tube provides excellent visibility, while tamper-proof scale stickers deliver stable, accurate readings without recalibration.

The F9000 O is ideal for installations that require a balance between flow capacity, chemical resistance, and operational durability.

  • Flow range from 1000 to 9000 LPH – suitable for heavy-duty applications
  • SS316 flanges ensure long-term reliability in corrosive environments
  • Suitable for continuous duty with no maintenance hassles

Key features

    • Fluid: Water, treated effluent, or compatible process fluids
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 40 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F9000 O
  • Flow Range: 1000–9000 LPH
  • Least Count: 1000 LPH
  • Nozzle Size: 40 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 120 × 80 × 390 mm
  • Distance Between Flanges (A): 50 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Ships within 1–2 business days of order confirmation.
  • Available via ground and express shipping channels.
  • Bulk orders can be shipped in palletized lots for safety.
  • Q1: Can this be used for high-TDS or saline water?
    A: Yes, the SS316 float and flanges provide high resistance to corrosion, making it suitable for high-TDS water.
  • Q2: Can this model be used outdoors?
    A: Yes, but covering it from direct sunlight will improve the longevity of the scale readability and body clarity.
  • Q3: How is this model installed?
    A: It is mounted vertically between flanges with standard gasket and bolt arrangements. Ensure proper alignment during installation.
  • Q4: Is periodic recalibration required?
    A: No recalibration is needed when used with water. Calibration is done at the factory and remains stable under normal use.
  • Each unit packed in a sturdy corrugated box with inner foam support.
  • Label includes model number, nozzle size, and flow range for easy identification.
  • Test certificates available on request.
  • Ships within 1–2 business days of order confirmation.
  • Available via ground and express shipping channels.
  • Bulk orders can be shipped in palletized lots for safety.
  • Use only with vertical installation and bottom-to-top flow direction.
  • Avoid exceeding pressure or temperature ratings.
  • Do not apply mechanical load or pipe stress to the body.

Monthly visual inspection is recommended. In case of scaling or sedimentation, flush the tube with clean water. Do not use abrasive tools or chemicals that can damage the transparent polycarbonate surface or float calibration.

  • Mid-scale RO and UF systems
  • Effluent return or discharge monitoring
  • Cooling tower flow lines
  • Utility water balancing lines
