Aster Rotameter – 1000–9000 LPH – 50 NB – SS316 Flanged

Aster Rotameter – 1000–9000 LPH – 50 NB – SS316 Flanged

1 1

Aster Rotameter – 1000–9000 LPH – 50 NB – SS316 Flanged

Aster Rotameter – 1000–9000 LPH – 50 NB – SS316 Flanged

Rs. 15,899.00
Sale price Rs. 15,899.00 Rs. 16,999.00 (Save Rs. 1,100.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

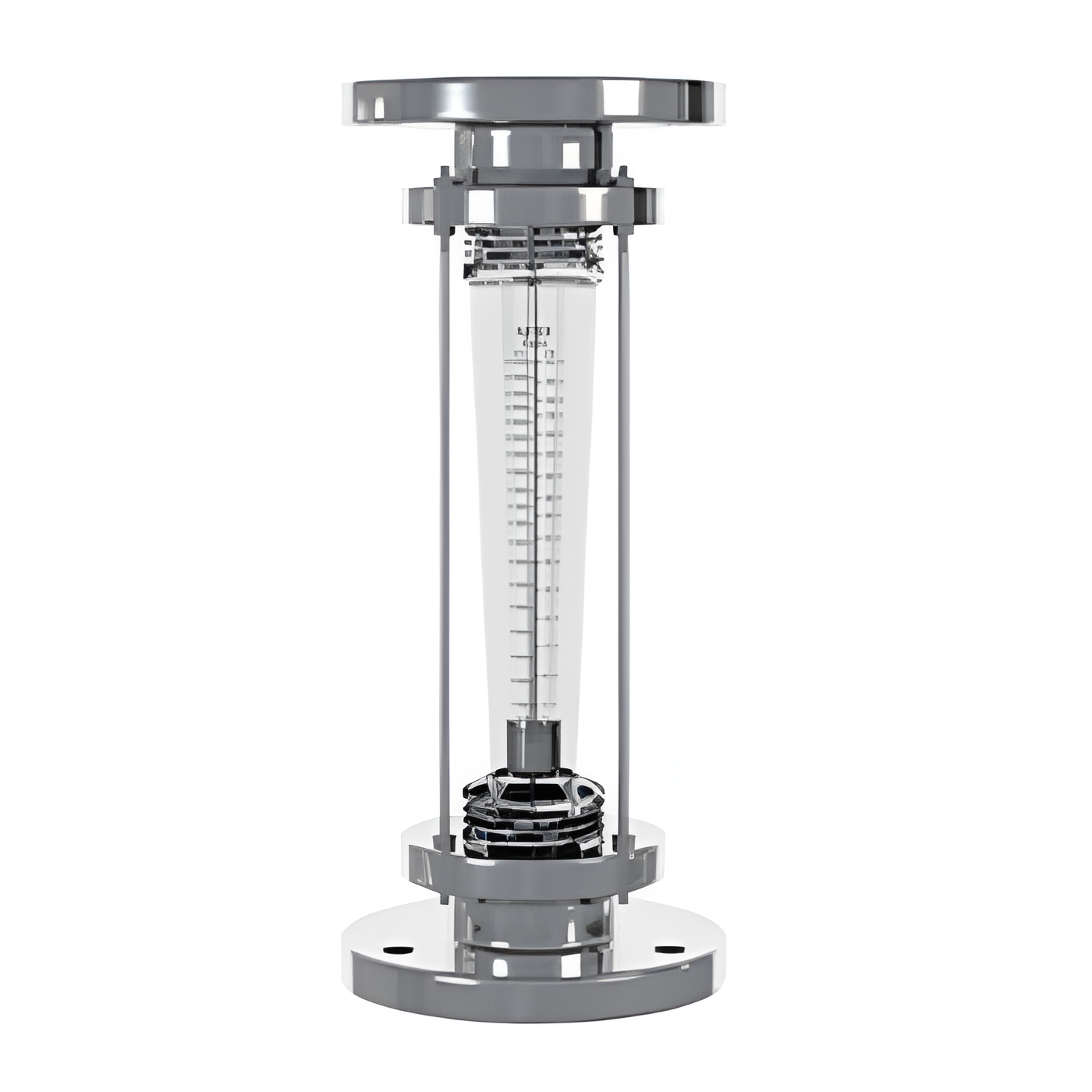

The Aster Rotameter – 1000–9000 LPH – 50 NB – SS316 Flanged is a high-performance flow meter designed for process engineers who require reliable measurement in corrosive or high-temperature systems. With a wide flow range up to 9000 LPH and robust SS316 flanged ends, this model delivers unmatched durability in industries such as effluent treatment, chemical processing, and large-scale filtration systems.

Built with a clear polycarbonate tube and tamper-proof flow scale, this rotameter provides excellent readability and consistency. The SS316 flanges and float ensure maximum resistance against chemical corrosion, making it suitable for aggressive media and high-reliability environments.

With easy inline vertical mounting and long service life, the F9000 O is a trusted choice for mid-to-heavy duty flow monitoring needs.

  • Wide flow range from 1000 to 9000 LPH
  • SS316 flanged ends and float for long-lasting chemical resistance
  • Suited for high-volume, aggressive fluid applications

Key features

    • Fluid: Water, chemicals, or compatible aggressive fluids
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 50 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F9000 O
  • Flow Range: 1000–9000 LPH
  • Least Count: 1000 LPH
  • Nozzle Size: 50 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 120 × 80 × 390 mm
  • Distance Between Flanges (A): 50 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Ships within 2 working days of confirmed order
  • Nationwide delivery with logistics support for bulk orders
  • Can be combined with other instrumentation for project supply
  • Q1: Can it be used for brine or acidic fluids?
    A: Yes, SS316 construction offers good resistance to mildly acidic and saline fluids. Always check compatibility with your specific chemical.
  • Q2: Is this rotameter available with a certificate?
    A: Yes, factory test reports and calibration certificates can be provided upon request.
  • Q3: Is it suitable for high-pressure dosing lines?
    A: Yes, it handles pressures up to 6 kg/cm² comfortably when mounted with proper flanged gaskets and torque.
  • Q4: How long does the scale last?
    A: The scale is tamper-proof and UV-resistant under typical use, offering multi-year durability when not exposed to harsh solvents or abrasives.
  • Individually packed with cushioning foam and labeled outer box
  • Model and flow range clearly marked for identification
  • Ready for export-safe and shock-proof transportation
  • Ships within 2 working days of confirmed order
  • Nationwide delivery with logistics support for bulk orders
  • Can be combined with other instrumentation for project supply
  • Ensure vertical installation with upward flow
  • Do not exceed pressure and temperature ratings
  • Verify flange sealing with compatible gaskets

Periodic inspection is advised, especially in systems with suspended solids or mineral content. Clean only with soft materials and water or mild neutral solutions.

  • STP/ETP treated water lines
  • Large RO and ultrafiltration system outlets
  • Chemical transfer and dilution skids
  • Cooling water loops and blowdown control
