Aster Rotameter – 10000–50000 LPH – 65 NB – Panel Mounted

Aster Rotameter – 10000–50000 LPH – 65 NB – Panel Mounted

1 1

Aster Rotameter – 10000–50000 LPH – 65 NB – Panel Mounted

Aster Rotameter – 10000–50000 LPH – 65 NB – Panel Mounted

Rs. 9,499.00
Sale price Rs. 9,499.00 Rs. 10,999.00 (Save Rs. 1,500.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

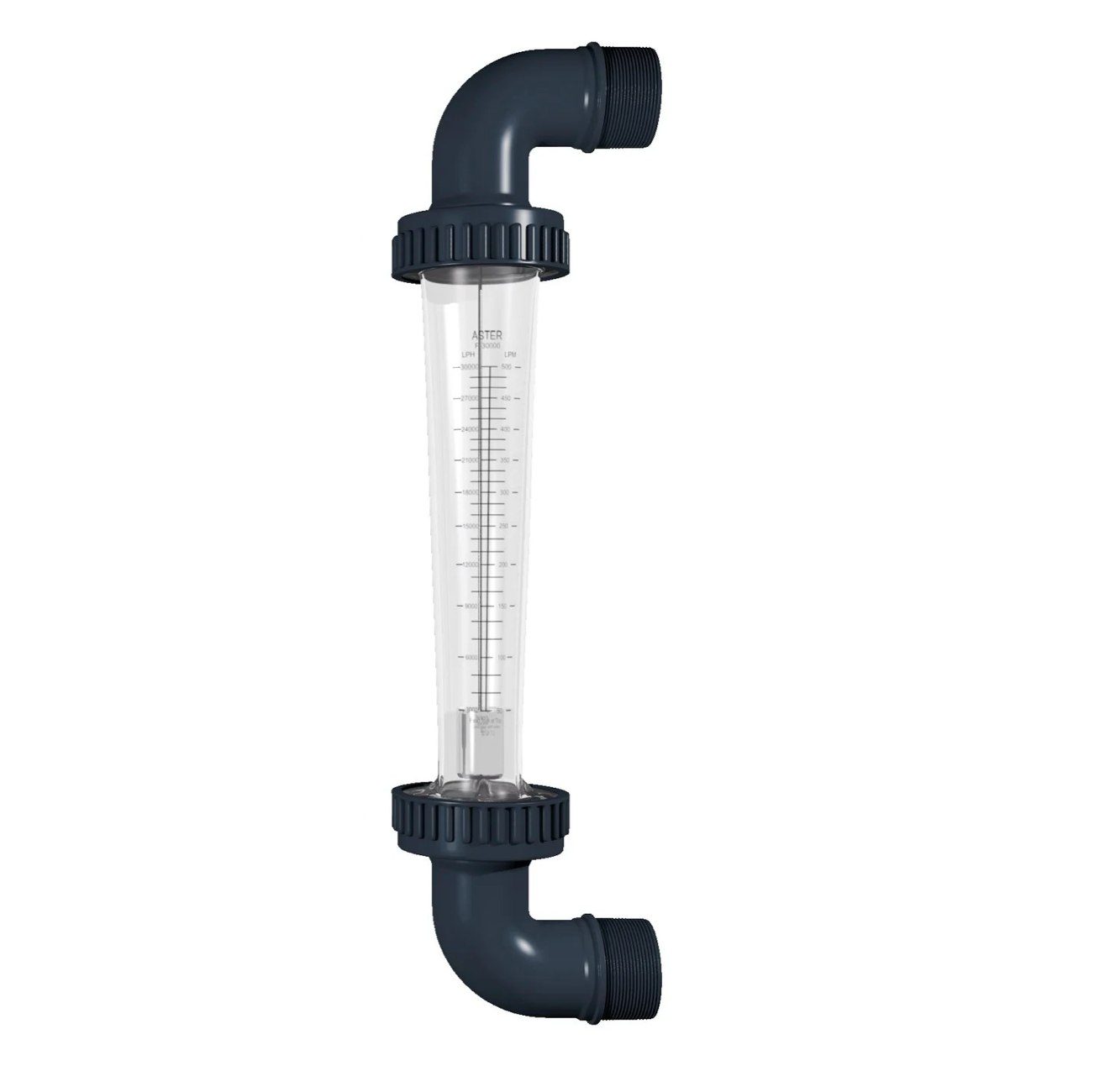

The Aster Rotameter – 10000–50000 LPH – 65 NB – Panel Mounted is the highest-capacity rotameter in the Aster range, purpose-built for large-scale industrial and municipal water flow monitoring. With an exceptional flow range of 10000 to 50000 LPH, this model is suited for major ETP/STP discharge lines, central RO plant outputs, industrial utilities, and large cooling tower return circuits.

Manufactured with a long 480 mm clear polycarbonate tube, heavy-duty SS316 float, and robust 65 NB BSP male-threaded ABS ends, the F50000E ensures long-term reliability and float visibility at extremely high volumes. It supports panel installation via two 75 mm diameter holes spaced 605 mm center-to-center and operates in a vertical orientation from bottom inlet to top outlet. It is pre-calibrated for water (SG = 1) and ready for immediate deployment in large-capacity systems.

If you're monitoring bulk water movement and need maximum range with clarity and control, the Aster F50000E is engineered for the task.

  • Massive flow capacity of 10000–50000 LPH
  • Ideal for city-scale STP, central RO, or large industrial cooling systems
  • Designed for stability, high float visibility, and low maintenance

Key features

    • Fluid: Water
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 5 kg/cm²
    • Max. Operating Temperature: 60°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH/LPM
    • End Connection: 65 NB BSP (Male) – Plastic Threaded End
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Panel Mounted
    • Scale Sticker: Temper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • Nut/End Nipple Material: ABS
  • Model: F50000E
  • Flow Range: 10000–50000 LPH
  • Least Count: 5000 LPH
  • Nozzle Size: 65 NB BSP (Male)
  • Mounting Type: Panel Mounted
  • Connection Type: Plastic Threaded End
  • Dimensions (H × h × D × d): 480 × 605 × 116 × 75 mm
  • Panel Cutout: 2 holes of 75 mm dia – 605 mm c/c

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatched within 2 working days from order confirmation.
  • Shipped via heavy-load ground transport or specialized freight, pan-India.
  • Custom packaging for OEMs, municipal projects, and bulk dispatch available.
  • Q1: What kind of installations require the F50000E?
    A: It is designed for extremely high-flow systems like large STP/ETP discharge pipelines, RO permeate distribution in municipalities, and large-scale industrial utility water applications.
  • Q2: Is it reliable for 24/7 high-capacity operation?
    A: Absolutely. The unit is built to withstand continuous heavy-duty use under rated temperature and pressure limits.
  • Q3: Can this handle aggressive fluids or wastewater?
    A: It is designed for water (SG = 1). For aggressive media, confirm compatibility with polycarbonate and SS316. Pre-filtration is recommended for particulate-heavy flows.
  • Q4: Is the float still visible at full scale?
    A: Yes. The tall, clear body ensures full float visibility even at maximum flow rates, aiding operator monitoring.
  • Packed individually in oversized cartons with reinforced protection and shock-proof foam lining.
  • Labelled with model number, flow range, and connection size for easy warehouse handling.
  • Dispatched within 2 working days from order confirmation.
  • Shipped via heavy-load ground transport or specialized freight, pan-India.
  • Custom packaging for OEMs, municipal projects, and bulk dispatch available.
  • Mount vertically only with correct bottom-to-top flow direction.
  • Support inlet and outlet pipelines to prevent body strain or damage.
  • Do not exceed 5 kg/cm² pressure or 60°C fluid temperature ratings.

Inspect monthly for sediment, float jamming, or cloudy tube visibility. Clean gently with water. Avoid aggressive cleaning agents, strong chemicals, or abrasive tools that may harm the body or scale.

  • Municipal or industrial ETP/STP treated water lines
  • RO/UF plant high-output pipelines
  • Cooling tower blowdown or water return lines
  • Bulk water distribution infrastructure and flow control
