Aster Rotameter – 10000–50000 LPH – 65 NB – PP Flanged

Aster Rotameter – 10000–50000 LPH – 65 NB – PP Flanged

1 1

Aster Rotameter – 10000–50000 LPH – 65 NB – PP Flanged

Aster Rotameter – 10000–50000 LPH – 65 NB – PP Flanged

Rs. 10,699.00
Sale price Rs. 10,699.00 Rs. 12,999.00 (Save Rs. 2,300.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

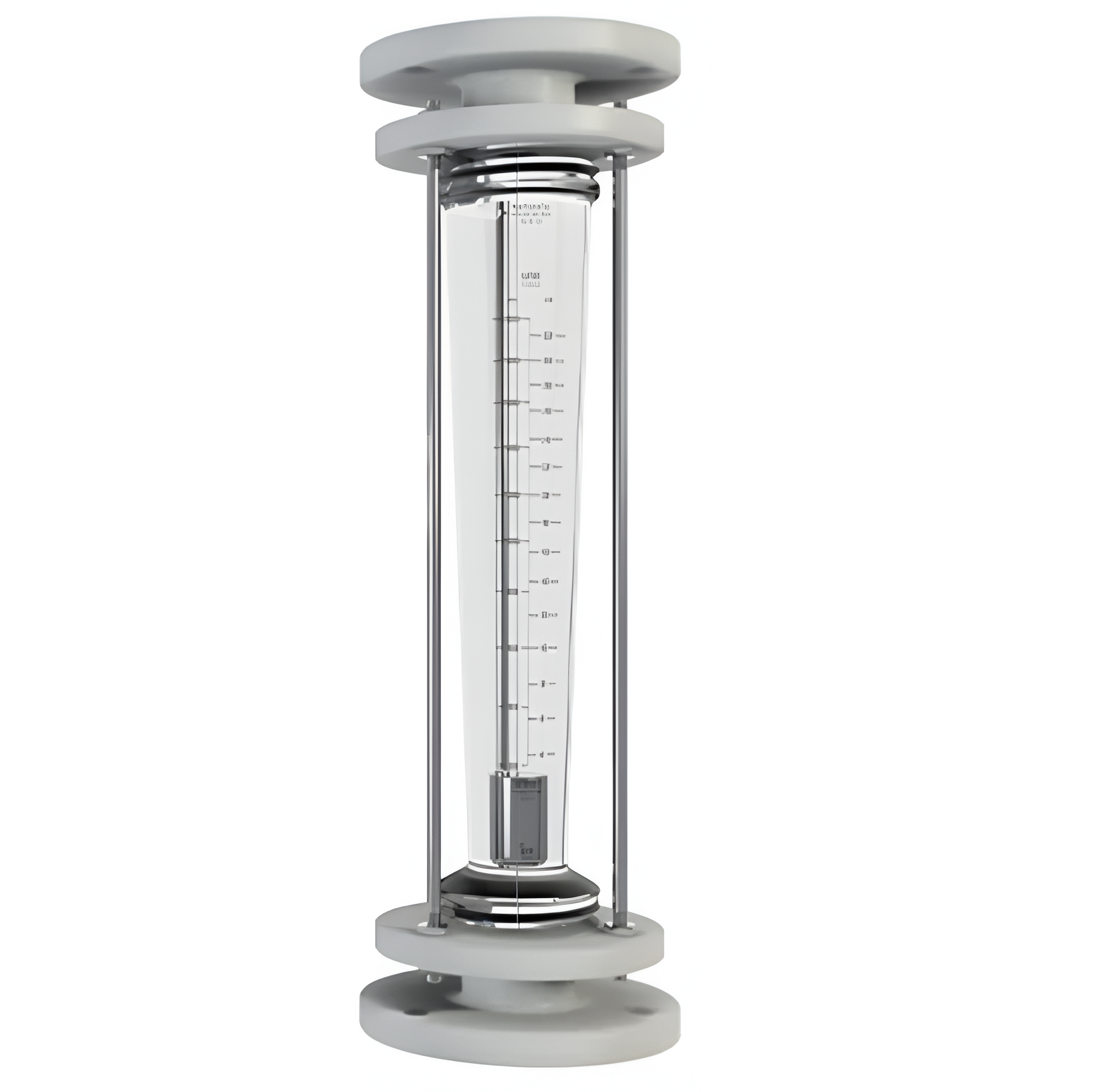

The Aster Rotameter – 10000–50000 LPH – 65 NB – PP Flanged is the highest-capacity model in the Aster PP flanged series, engineered for ultra-high-volume flow monitoring in large-scale industrial, utility, and municipal water applications. It is purpose-built for processes that demand precise indication of massive flows — such as effluent discharge, treated water reuse, or central RO plant outputs.

Equipped with a wide 65 NB flanged inlet and outlet, a strong polycarbonate flow tube, and an SS316 float, this model ensures unmatched durability, clear visibility, and high-accuracy readings across an expansive 10000–50000 LPH range. The rotameter is factory-calibrated for water (SG = 1), features tamper-proof scale markings, and supports vertical online mounting (bottom inlet, top outlet).

When flow volumes are large, and accuracy is non-negotiable — the F50000 O is your reliable, long-life flow measurement solution.

  • Designed for very high flow conditions up to 50,000 LPH
  • Ideal for large plant outlets, tertiary water reuse systems, and pumping stations
  • Sturdy, impact-resistant design with exceptional float stability

Key features

    • Fluid: Water
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 5 kg/cm²
    • Max. Operating Temperature: 60°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 65 NB PP Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Temper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • Flange Material: Polypropylene
  • Model: F50000 O
  • Flow Range: 10000–50000 LPH
  • Least Count: 5000 LPH
  • Nozzle Size: 65 NB
  • Mounting Type: Online Mounted
  • Connection Type: PP Flanged
  • Flange Dimensions (X × D × H): 165.1 × 127.0 × 500 mm
  • Distance Between Flanges (A): 78.0 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatch time: 2 business days from confirmed order
  • Available for national and international freight
  • Bulk shipments palletized for secure handling
  • Q1: Is this the largest rotameter offered in the Aster PP Flanged range?
    A: Yes, the F50000 O is the highest-capacity model in the standard PP flanged online series.
  • Q2: Can I install this in an outdoor water treatment plant?
    A: Yes, as long as the unit is protected from direct sunlight and mechanical shock, it is suitable for outdoor use in treated water applications.
  • Q3: Does it require periodic recalibration?
    A: Not for water. For other media with different specific gravities, recalibration or correction factor application is needed.
  • Q4: How do I ensure accurate installation?
    A: Ensure the unit is mounted vertically, free of vibrations, and that inlet/outlet flanges are aligned properly with gaskets in place.
  • Heavy-duty, foam-lined corrugated box packaging
  • Clearly labeled with model, range, and size
  • Optional calibration/test certificate available
  • Dispatch time: 2 business days from confirmed order
  • Available for national and international freight
  • Bulk shipments palletized for secure handling
  • Install in vertical orientation with flow from bottom to top
  • Flush the pipeline before installation to avoid sediment interference
  • Do not exceed 60°C temperature or 5 kg/cm² pressure rating

Inspect monthly for clarity and float mobility. Flush with clean water to remove any buildup. Avoid tools or cleaning agents that could scratch the scale or tube. If deposits persist, disassemble gently and clean with a compatible soft cleaning solution.

  • Large STP/ETP treated water discharge lines
  • High-flow RO, UF, and tertiary treatment outputs
  • Cooling water return lines
  • Industrial and municipal pumping station flow monitoring
