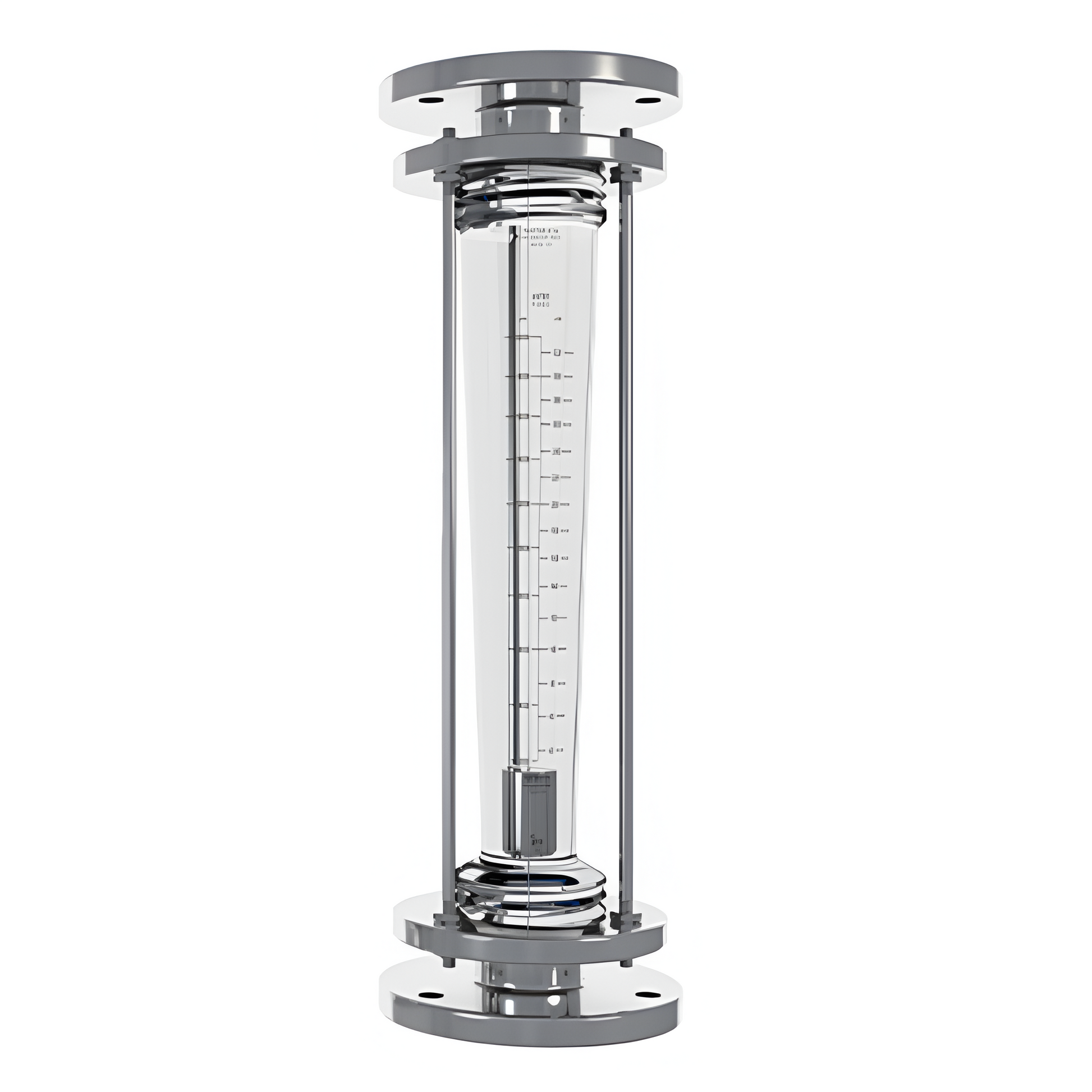

The Aster Rotameter – 2000–20000 LPH – 65 NB – SS316 Flanged is engineered for precision flow monitoring in high-volume industrial and municipal pipelines. This model features SS316 flanged ends and a matching SS316 float, delivering superior corrosion resistance and longevity in both water and mild chemical applications.

Designed for vertical installation (bottom inlet, top outlet), the F20000 O ensures stable performance even in continuous operation. Its polycarbonate body provides clear float visibility, while the tamper-proof flow scale enables consistent and easy readings.

Perfect for medium- to large-scale water treatment systems, this rotameter helps track flow across STP/ETP discharge lines, effluent reuse networks, and high-output RO/UF plants.

  • Flow range: 2000 to 20000 LPH
  • SS316 float and end flanges for high durability
  • Suitable for treated water, effluent, and neutral process liquids

Key features

    • Fluid: Water, treated effluent, or compatible low-viscosity liquids
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 65 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F20000 O
  • Flow Range: 2000–20000 LPH
  • Least Count: 2000 LPH
  • Nozzle Size: 65 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 190 × 116 × 605 mm
  • Distance Between Flanges (A): 75 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Ships within 2 working days from order confirmation
  • Packed securely for safe handling in single or bulk shipments
  • Palletized packing available for bulk orders
  • Q1: Is this rotameter suitable for ETP discharge?
    A: Yes, it is ideal for tracking medium to high flow rates in treated effluent pipelines and similar industrial discharges.
  • Q2: Can it be used with non-water liquids?
    A: Yes, provided the liquid has a similar specific gravity and is chemically compatible with SS316 and polycarbonate.
  • Q3: What is the installation orientation?
    A: The unit must be mounted vertically with bottom-to-top flow direction.
  • Q4: Is recalibration necessary?
    A: No recalibration is required for standard water-based applications. For different fluids, correction factors may apply.
  • Heavy-duty box with shock-absorbing foam inserts for transport protection
  • Product label includes model name, flow range, and connection size
  • Optional test/calibration certificate available upon request
  • Ships within 2 working days from order confirmation
  • Packed securely for safe handling in single or bulk shipments
  • Palletized packing available for bulk orders
  • Install vertically with bottom inlet and top outlet only
  • Do not exceed 60°C temperature or 5 kg/cm² pressure
  • Do not use with abrasive slurries or air/gas without factory recalibration

For optimal performance, inspect for clouding or sediment monthly. Clean gently with water or non-aggressive cleaning agents. Do not use hard brushes or sharp tools on the transparent body or float. Always flush the pipeline before initial use.

  • Effluent discharge monitoring (ETP/STP)
  • Industrial utility water flow tracking
  • RO/UF output and bypass pipelines
  • Recycled water lines in factories or townships
