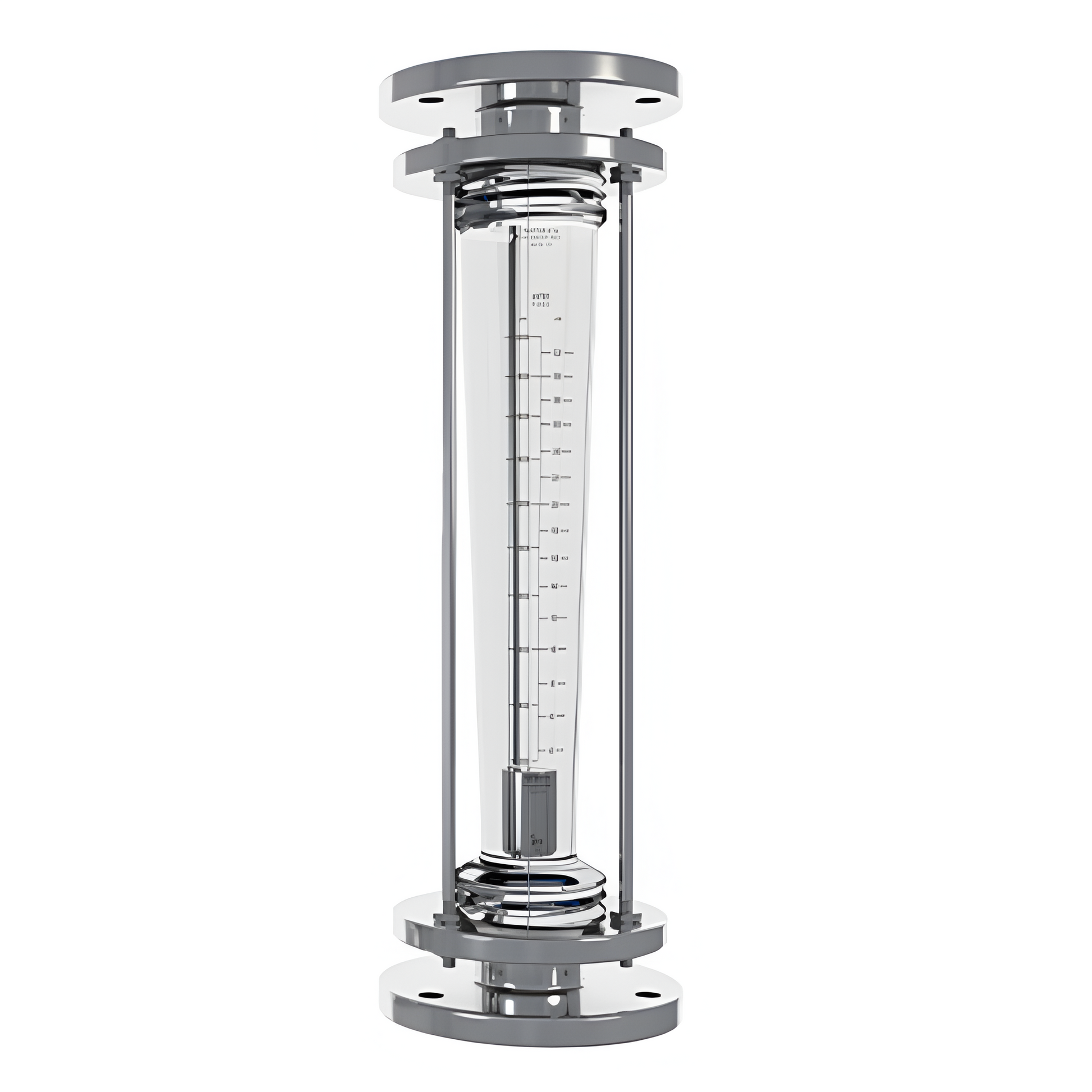

Aster Rotameter – 2000–20000 LPH – 80 NB – SS316 Flanged

Aster Rotameter – 2000–20000 LPH – 80 NB – SS316 Flanged

1 1

Aster Rotameter – 2000–20000 LPH – 80 NB – SS316 Flanged

Aster Rotameter – 2000–20000 LPH – 80 NB – SS316 Flanged

Rs. 25,899.00
Sale price Rs. 25,899.00 Rs. 27,999.00 (Save Rs. 2,100.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

The Aster Rotameter – 2000–20000 LPH – 80 NB – SS316 Flanged is a high-capacity flow indicator designed for large industrial pipelines handling water or process fluids with demanding flow requirements. With robust SS316 flanged end connections and an SS316 float, this rotameter is ideally suited for corrosive or high-load applications such as effluent discharge, water treatment plants, and utility water pipelines.

Its clear polycarbonate body offers excellent visibility of the float and printed scale, while the stainless steel hardware ensures chemical resistance, long service life, and safe operation under elevated pressures and temperatures. Designed for vertical installation (bottom inlet, top outlet), this unit provides fast, reliable, and maintenance-free operation in harsh industrial environments.

F20000 O is a dependable solution where both performance and material integrity matter for large flow pipelines.

  • Massive flow range up to 20000 LPH
  • SS316 flanged ends and float for superior chemical compatibility
  • Large bore (80 NB) for minimal flow restriction

Key features

    • Fluid: Water, effluent, or compatible process liquids
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 80 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F20000 O
  • Flow Range: 2000–20000 LPH
  • Least Count: 2000 LPH
  • Nozzle Size: 80 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 190 × 116 × 605 mm
  • Distance Between Flanges (A): 75 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatch within 2 working days from order confirmation
  • Available for transport via courier, road, or freight
  • Pallet packing for orders of 5+ units
  • Q1: Is this rotameter compatible with high-TDS or treated effluent?
    A: Yes, its SS316 construction is suitable for treated effluent and high-TDS water, commonly found in STP/ETP pipelines.
  • Q2: Can it be installed outdoors?
    A: Yes, but shielding from direct sunlight is recommended to preserve the clarity of the polycarbonate tube over time.
  • Q3: What gaskets are recommended for flange sealing?
    A: Standard PTFE or rubber gaskets compatible with SS316 flanges are recommended for leak-proof installation.
  • Q4: Does it come calibrated?
    A: Yes, it is factory-calibrated for water (SG = 1). Calibration certificates are available on request.
  • Heavy-duty foam-filled packaging to protect during transit
  • Clearly labeled for model, flow range, and size
  • Bulk packaging for OEM or industrial orders available
  • Dispatch within 2 working days from order confirmation
  • Available for transport via courier, road, or freight
  • Pallet packing for orders of 5+ units
  • Install only in a vertical position (bottom to top flow)
  • Do not exceed 70°C temperature or 6 kg/cm² pressure
  • Flush pipeline before installation to avoid clogging the float

Periodic visual checks and gentle water flushing are typically sufficient. If any discoloration or scaling is observed, remove the unit and clean using mild cleaning solutions compatible with polycarbonate and polypropylene. Avoid scraping the scale or using solvents.

  • Large-scale STP/ETP discharge monitoring
  • Process water measurement in utilities and industrial plants
  • Raw water pumping stations
  • Municipal water supply systems
