Aster Rotameter – 2000–20000 LPH – TC Mounted

Aster Rotameter – 2000–20000 LPH – TC Mounted

1 1

Aster Rotameter – 2000–20000 LPH – TC Mounted

Aster Rotameter – 2000–20000 LPH – TC Mounted

Rs. 16,699.00
Sale price Rs. 16,699.00 Rs. 17,999.00 (Save Rs. 1,300.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

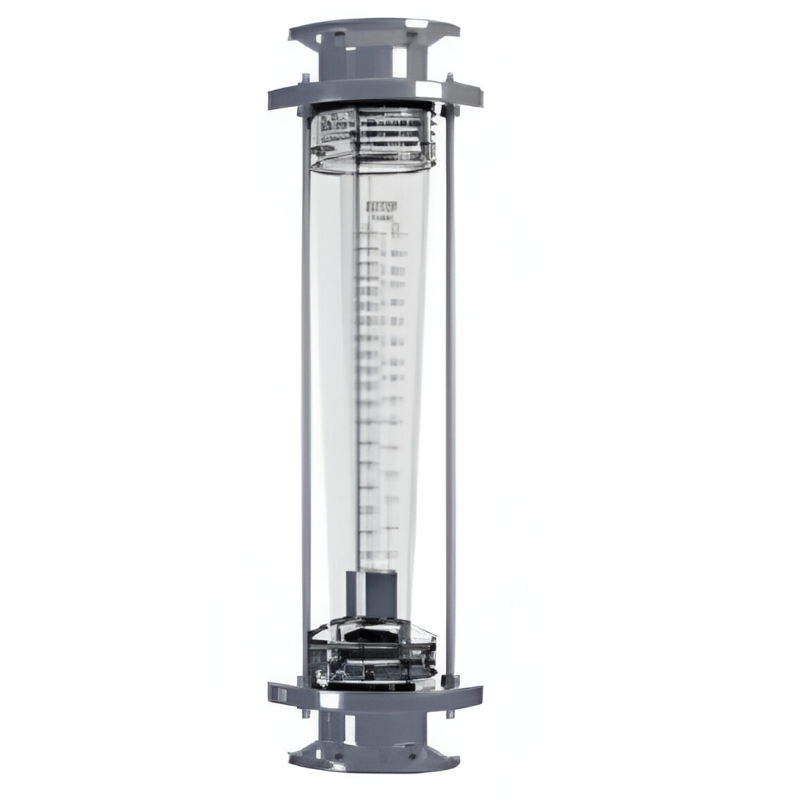

The Aster Rotameter – 2000–20000 LPH – TC Mounted is a high-performance stainless steel flowmeter designed for industrial-scale water flow monitoring. With a broad flow range of 2000 to 20000 LPH, this model is built to handle large discharge volumes in ETP/STP plants, industrial RO systems, cooling water networks, and utility lines with precision and hygiene.

Constructed entirely from SS316—including the body, float, and end connections—this unit ensures excellent corrosion resistance, long-term durability, and sanitary-grade compatibility. It features a heavy-duty 78 mm Tri-Clamp connection for stable installation and is calibrated for water (SG = 1). The vertical mounting configuration (bottom inlet, top outlet) ensures uninterrupted and accurate flow tracking even under demanding site conditions.

With robust construction and high flow tolerance, the F20000 O is a preferred solution for engineers and operators managing critical water flow operations.

  • Handles large flow volumes up to 20000 LPH
  • SS316 body and float for industrial and hygienic use
  • Equipped with 78 mm Tri-Clamp connection for high-flow line stability

Key features

    • Fluid: Water
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 5 kg/cm²
    • Max. Operating Temperature: 60°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 78 mm Tri-Clamp
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Material of Construction: SS316 – Body, Float, Ends
  • Model: F20000 O
  • Flow Range: 2000–20000 LPH
  • Least Count: 1000 LPH
  • Nozzle Size: 78 mm Tri-Clamp
  • Mounting Type: Online Vertical
  • Connection Type: Tri-Clamp
  • Dimensions (L × A): 480 mm × 78 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Ships within 2 working days of order confirmation.
  • Export-grade wooden crate packaging available for bulk orders.
  • Documentation and calibration certificates included upon request.
  • Q1: What types of systems use this rotameter?
    A: It is commonly used in high-volume RO lines, ETP/STP discharge, cooling tower systems, and municipal water flows.
  • Q2: Is this rotameter suitable for slightly corrosive or treated water?
    A: Yes, the full SS316 build offers good chemical resistance and is safe for most treated and clean fluids.
  • Q3: Can it be used in CIP/SIP environments?
    A: Absolutely. Its Tri-Clamp end and stainless build meet the hygienic requirements for easy cleaning and inspection.
  • Q4: Does this model support continuous monitoring?
    A: Yes, it is designed for 24/7 continuous-duty applications in demanding environments.
  • Packed in reinforced foam-lined cartons with protective casing.
  • Clearly labeled with model, flow range, and connection dimensions.
  • Ships within 2 working days of order confirmation.
  • Export-grade wooden crate packaging available for bulk orders.
  • Documentation and calibration certificates included upon request.
  • Install vertically with flow from bottom to top.
  • Use properly sized gasket and clamp set for 78 mm Tri-Clamp ends.
  • Do not exceed operating pressure or temperature limits.

For long-term accuracy, clean the internals periodically with water or compatible descaling solution. Avoid using abrasive materials that may damage the SS316 surface or engraved scale. Check gasket condition regularly in high-use environments.

  • Effluent treatment and sewage discharge flow tracking
  • Industrial-scale RO and filtration skids
  • Cooling tower return and blowdown lines
  • High-volume clean water distribution pipelines
