Aster Rotameter – 500–5000 LPH – 40 NB – PP Flanged

Aster Rotameter – 500–5000 LPH – 40 NB – PP Flanged

1 1

Aster Rotameter – 500–5000 LPH – 40 NB – PP Flanged

Aster Rotameter – 500–5000 LPH – 40 NB – PP Flanged

Rs. 5,899.00
Sale price Rs. 5,899.00 Rs. 7,999.00 (Save Rs. 2,100.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

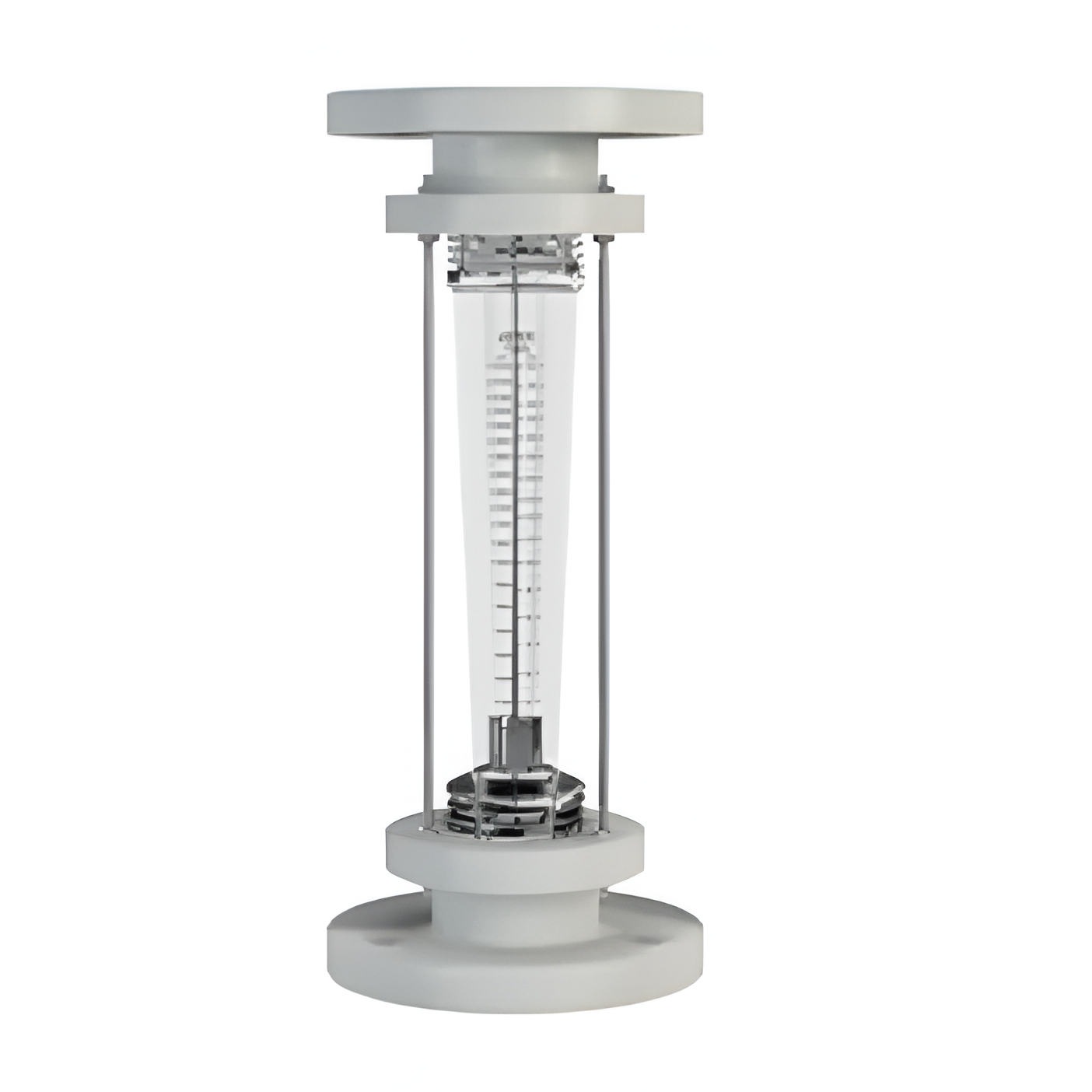

The Aster Rotameter – 500–5000 LPH – 40 NB – PP Flanged is a high-capacity, industrial-grade flow meter engineered to meet the demands of water treatment, chemical dosing, and high-volume process lines. With a wide flow range of 500 to 5000 LPH, this model offers excellent readability, rugged construction, and dependable performance in medium- to large-scale pipelines.

This rotameter features a clear polycarbonate body with a high-visibility tamper-proof scale and a precision-engineered SS316 float. The 40 NB polypropylene flanged ends allow quick and secure installation onto chemical or water process pipelines. Designed for vertical online mounting with bottom inlet and top outlet, it is ideal for flow monitoring in STP, ETP, cooling towers, and RO plants.

Built for daily industrial use, the Aster F5000 O provides unmatched accuracy and durability in its class.

  • Flow range ideal for filtration units, backwash lines, and large softener systems
  • Resistant to corrosion and pressure surges
  • Designed to deliver long life with minimal maintenance

Key features

    • Fluid: Water
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 5 kg/cm²
    • Max. Operating Temperature: 60°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 40 NB PP Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Temper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • Flange Material: Polypropylene
  • Model: F5000 O
  • Flow Range: 500–5000 LPH
  • Least Count: 500 LPH
  • Nozzle Size: 40 NB
  • Mounting Type: Online Mounted
  • Connection Type: PP Flanged
  • Flange Dimensions (X × D × H): 134.0 × 98.4 × 300 mm
  • Distance Between Flanges (A): 64.0 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatched within 2 working days post order confirmation.
  • Available for standard and priority shipping across India.
  • Palletized shipping offered for bulk requirements.
  • Q1: Can I install this rotameter in a backward flow line?
    A: No, it must be installed in the direction of flow — bottom inlet, top outlet — for accurate performance.
  • Q2: Can I use this for seawater applications?
    A: Yes, but confirm compatibility of PP and polycarbonate with your specific seawater composition.
  • Q3: Is this suitable for slurry or turbid media?
    A: It is recommended only for clean liquids. Suspended solids may affect float movement and damage the tube.
  • Q4: How often should it be recalibrated?
    A: No recalibration is needed for water. For other media, recalibration depends on fluid density.
  • Packed in strong corrugated boxes with internal protective foam.
  • Model name and flow range labeled on outer box and product.
  • Includes instruction sheet and optional calibration report.
  • Dispatched within 2 working days post order confirmation.
  • Available for standard and priority shipping across India.
  • Palletized shipping offered for bulk requirements.
  • Do not install horizontally – vertical installation is mandatory.
  • Protect from UV exposure and high-impact mechanical stress.
  • Ensure proper flushing before and after installation.

Clean monthly or as required using soft cloth and clean water. Avoid acid or alkaline cleaners that may damage the body or scale. If sediment buildup occurs, gently disassemble and flush the interior components.

  • RO membrane output or backwash flow monitoring
  • Softener outlet lines
  • Filter pressure line flows
  • Chiller and cooling tower inlet flow
