Aster Rotameter – 3000–12000 LPH – 50 NB – SS316 Flanged

Aster Rotameter – 3000–12000 LPH – 50 NB – SS316 Flanged

1 1

Aster Rotameter – 3000–12000 LPH – 50 NB – SS316 Flanged

Aster Rotameter – 3000–12000 LPH – 50 NB – SS316 Flanged

Rs. 15,899.00
Sale price Rs. 15,899.00 Rs. 16,999.00 (Save Rs. 1,100.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

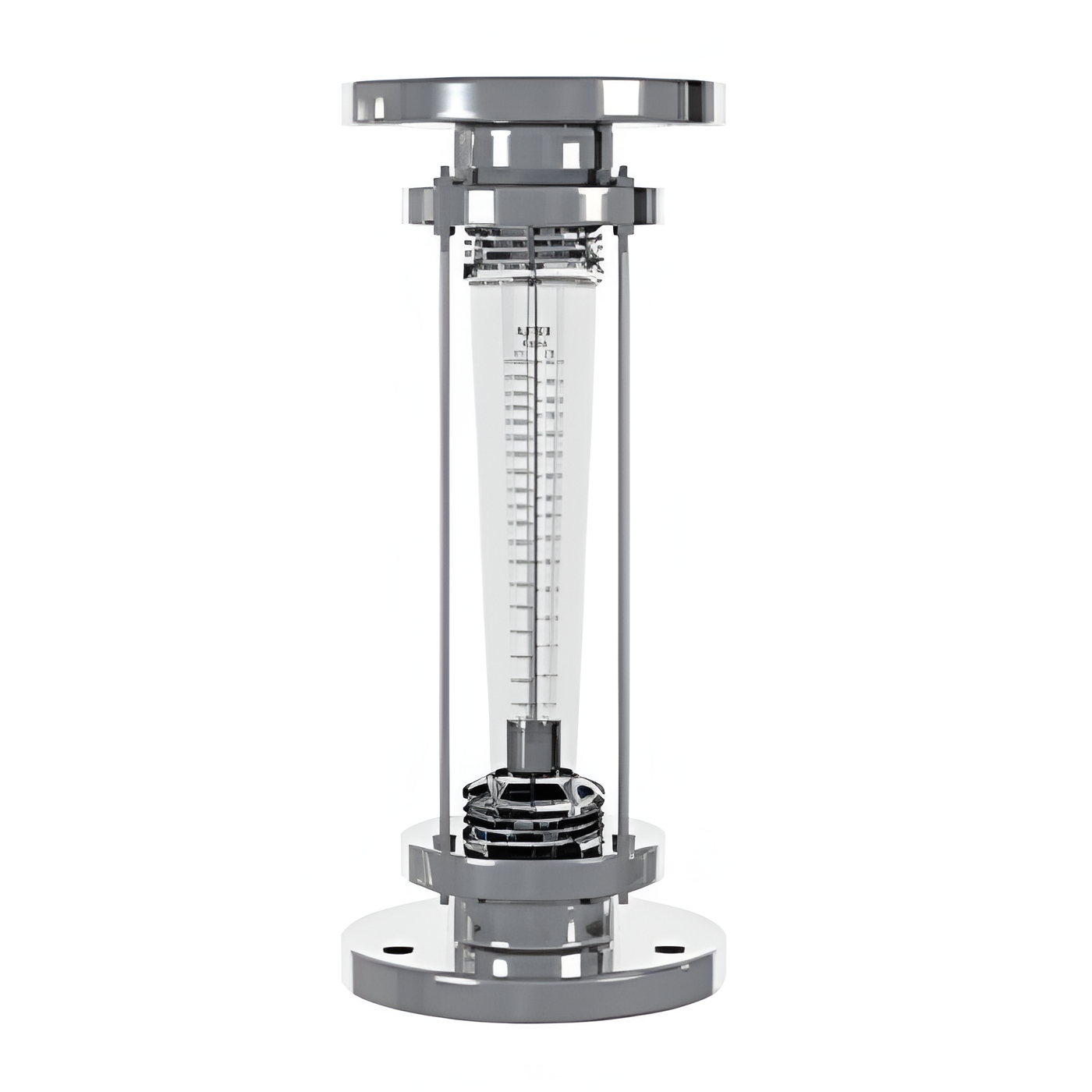

The Aster Rotameter – 3000–12000 LPH – 50 NB – SS316 Flanged is a high-flow industrial rotameter engineered for precise flow measurement of large volumes of water or compatible process liquids. Its SS316 flanged ends provide superior mechanical integrity and chemical resistance, making it a top choice for demanding applications such as large-scale RO systems, ETP discharge, and utility pipelines in process industries.

Featuring a polycarbonate flow tube and a clearly printed tamper-proof scale, this model delivers excellent visibility, smooth float tracking, and robust performance. The SS316 construction makes it suitable for a wide range of industrial media, ensuring durability in both neutral and mildly aggressive fluid systems.

For operations requiring continuous-duty flow tracking with minimal maintenance and high accuracy, the F12000 O stands out as a reliable, heavy-duty solution.

  • High capacity up to 12000 LPH for large flow pipelines
  • SS316 flanged ends ensure secure mounting and corrosion resistance
  • Suited for water, mild chemicals, and treated effluent

Key features

    • Fluid: Water or compatible industrial liquids
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 50 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F12000 O
  • Flow Range: 3000–12000 LPH
  • Least Count: 1000 LPH
  • Nozzle Size: 50 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 120 × 80 × 390 mm
  • Distance Between Flanges (A): 50 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatch in 2 working days after order confirmation
  • Ships via standard ground transport or air freight
  • Combined shipment option available for OEM orders
  • Q1: Can this rotameter be used for chlorinated water?
    A: Yes, SS316 offers good resistance to chlorinated water under controlled pH and temperature conditions.
  • Q2: What is the preferred installation position?
    A: Vertical mounting is mandatory, with bottom inlet and top outlet for accurate float operation.
  • Q3: Is recalibration needed for fluids other than water?
    A: Yes, if the specific gravity of the fluid deviates significantly from 1. Correction factors or recalibration may be applied.
  • Q4: Is it suitable for outdoor installation?
    A: Yes, but it is advisable to provide UV shielding for the polycarbonate tube to avoid long-term degradation.
  • Each unit is foam-packed in a labeled heavy-duty carton
  • Model, flow range, and flange size are clearly marked
  • Bulk packing and export-safe packaging available
  • Dispatch in 2 working days after order confirmation
  • Ships via standard ground transport or air freight
  • Combined shipment option available for OEM orders
  • Install only in vertical position
  • Use compatible flange gaskets for leak-proof sealing
  • Do not exceed rated pressure or temperature

Check monthly for buildup or discoloration on the scale or float. Clean with mild detergent and soft water. Avoid harsh chemicals or abrasive cloths to maintain clarity and calibration.

  • Effluent and treated water pipelines
  • High-flow RO and filtration systems
  • Process plant circulation or return lines
  • Municipal and industrial water systems
