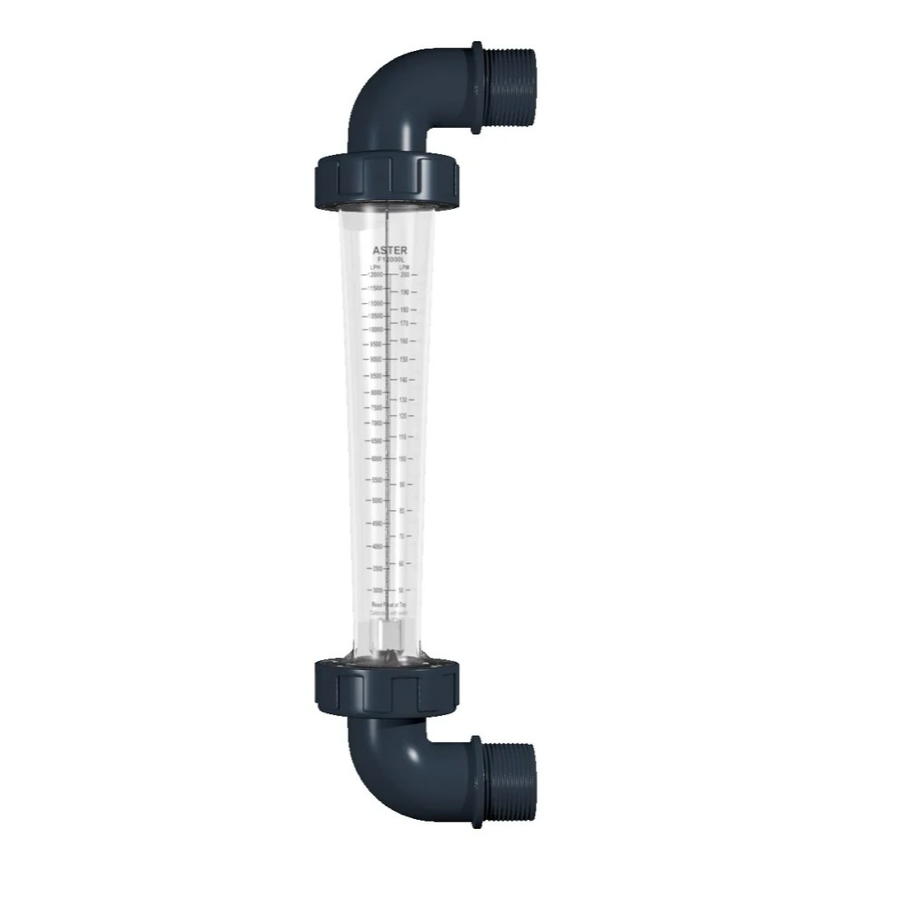

  • Black plastic elbow fitting with a clear tube on a white background
1 1

Aster Rotameter – 3000–15000 LPH – 40 NB – Panel Mounted

Aster Rotameter – 3000–15000 LPH – 40 NB – Panel Mounted

Rs. 3,599.00
Sale price Rs. 3,599.00 Rs. 3,999.00 (Save Rs. 400.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

The Aster Rotameter – 3000–15000 LPH – 40 NB – Panel Mounted is an industrial-grade flow meter engineered for high-volume water applications where accuracy and visibility are critical. With a broad flow range of 3000 to 15000 LPH, it is ideal for use in large RO/UF systems, STP/ETP discharge pipelines, industrial reuse systems, and filtration outputs.

This model features a tall, impact-resistant polycarbonate body for excellent float visibility, an SS316 float for corrosion resistance, and strong ABS male-threaded ends for secure connection to 40 NB BSP pipelines. The panel mounting configuration requires two 50 mm diameter holes spaced 390 mm apart, making it easy to install on control panels, treatment skids, or plant monitoring stations. Factory-calibrated for water (SG = 1), it ensures plug-and-play performance with minimal maintenance.

For engineers and OEMs looking for reliable, high-flow monitoring in a rugged design, the Aster F15000LE delivers exceptional value and performance.

  • Flow range from 3000–15000 LPH
  • Optimized for treated water reuse, cooling towers, and STP/ETP outlets
  • Large body height and float chamber for enhanced readability

Key features

    • Fluid: Water
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 5 kg/cm²
    • Max. Operating Temperature: 60°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH/LPM
    • End Connection: 40 NB BSP (Male) – Plastic Threaded End
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Panel Mounted
    • Scale Sticker: Temper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • Nut/End Nipple Material: ABS
  • Model: F15000LE
  • Flow Range: 3000–15000 LPH
  • Least Count: 500 LPH
  • Nozzle Size: 40 NB BSP (Male)
  • Mounting Type: Panel Mounted
  • Connection Type: Plastic Threaded End
  • Dimensions (H × h × d × D): 400 × 390 × 80 × 50 mm
  • Panel Cutout: 2 holes of 50 mm dia – 390 mm c/c

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Shipped within 2 working days of order confirmation.
  • Pan-India delivery via reliable courier/transport options.
  • Bulk packaging available for OEM or project shipments.
  • Q1: Where is this rotameter commonly used?
    A: It is used in treated water transfer lines, RO/UF plant outputs, STP/ETP discharge pipelines, and industrial cooling water systems requiring flow visibility above 3000 LPH.
  • Q2: Can it handle continuous duty in high-pressure environments?
    A: Yes, it is rated for up to 5 kg/cm² and 60°C and can operate 24/7 under these conditions.
  • Q3: Is the float visible at full scale?
    A: Yes, the extended body and large float chamber ensure visibility even at maximum flow, making it operator-friendly.
  • Q4: Is recalibration needed for different liquids?
    A: It is calibrated for water (SG = 1). For other fluids, recalibration or use of correction factors is recommended.
  • Individually packed in reinforced cartons with foam protection.
  • Clearly labeled for model, size, and flow range.
  • Shipped within 2 working days of order confirmation.
  • Pan-India delivery via reliable courier/transport options.
  • Bulk packaging available for OEM or project shipments.
  • Mount only in vertical orientation with bottom inlet and top outlet.
  • Flush the line before installation to avoid float blockage.
  • Protect from mechanical impact and direct prolonged sunlight.

Perform monthly inspections for sediment, algae, or scale. If cleaning is needed, rinse with clean water and avoid abrasive materials or solvents that may damage the polycarbonate or printed scale.

  • High-flow RO/UF water lines
  • Cooling water recirculation and blowdown tracking
  • STP/ETP treated water discharge
  • Greywater reuse and large process pipelines
