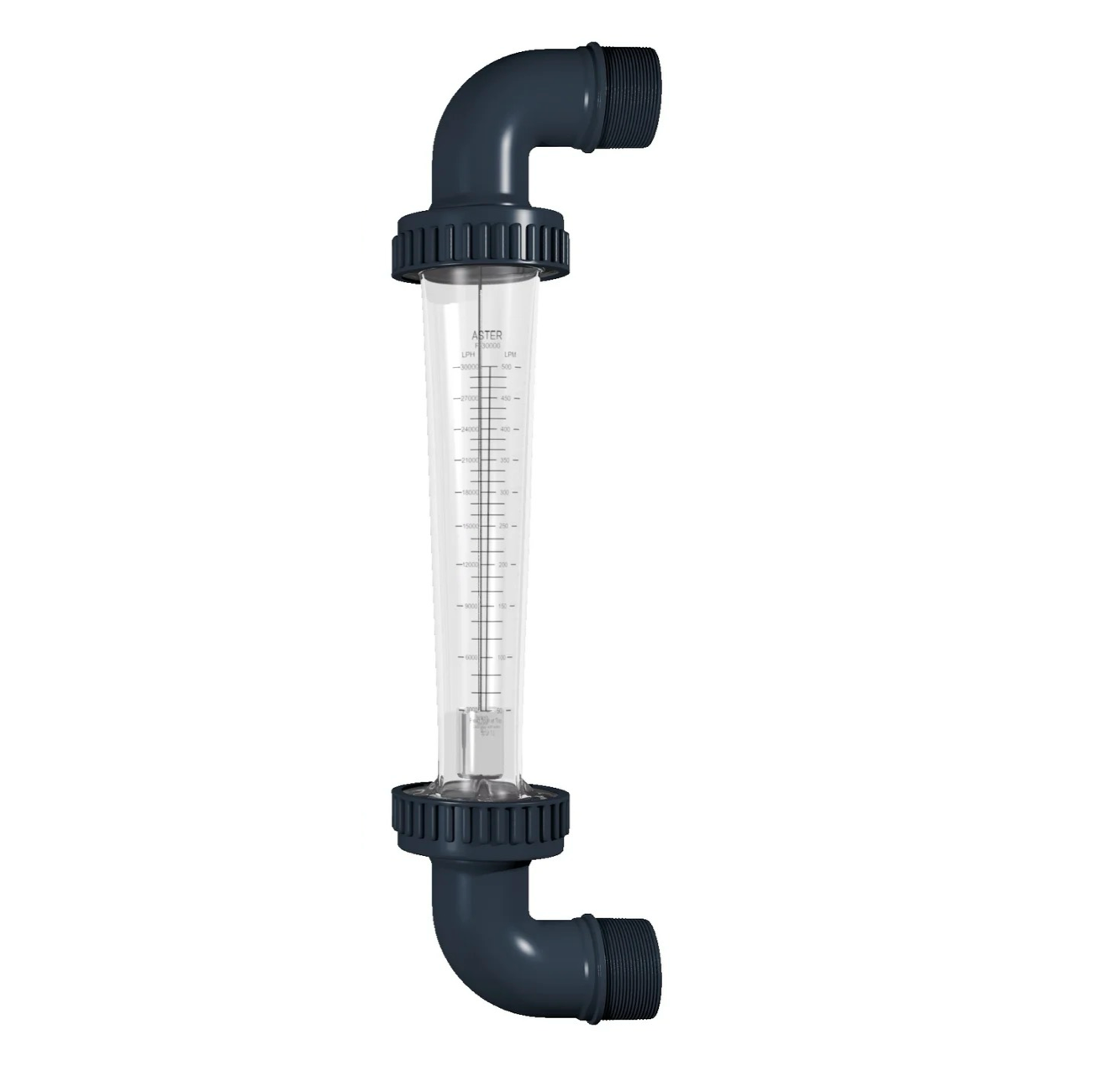

The Aster Rotameter – 3000–30000 LPH – 65 NB – Panel Mounted is the ultimate solution for high-volume water flow measurement in industrial, municipal, and utility-scale applications. With a maximum flow capacity of 30000 LPH, this model is built to provide precise, real-time monitoring in RO plants, ETP/STP discharge, and large water distribution lines.

Designed with a heavy-duty 480 mm polycarbonate body, corrosion-resistant SS316 float, and 65 NB BSP female-threaded ABS ends, the F30000E is engineered for durability and high visibility. It supports panel mounting with two 75 mm diameter holes spaced 605 mm center-to-center and operates vertically from bottom inlet to top outlet. Calibrated for water (SG = 1), the rotameter delivers consistent accuracy with minimal maintenance in demanding flow conditions.

If you're operating at full capacity and require a flow meter that can handle bulk flow reliably — the Aster F30000E is your industrial-grade workhorse.

  • Massive flow range of 3000–30000 LPH
  • Suitable for large-scale RO, STP, and water distribution systems
  • Clear scale visibility with tamper-proof construction

Key features

    • Fluid: Water
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 5 kg/cm²
    • Max. Operating Temperature: 60°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH/LPM
    • End Connection: 65 NB BSP (Female) – Plastic Threaded End
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Panel Mounted
    • Scale Sticker: Temper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • Nut/End Nipple Material: ABS
  • Model: F30000E
  • Flow Range: 3000–30000 LPH
  • Least Count: 3000 LPH
  • Nozzle Size: 65 NB BSP (Female)
  • Mounting Type: Panel Mounted
  • Connection Type: Plastic Threaded End
  • Dimensions (H × h × D × d): 480 × 605 × 116 × 75 mm
  • Panel Cutout: 2 holes of 75 mm dia – 605 mm c/c

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Ships within 2 working days after order confirmation.
  • Available for delivery across India through heavy freight services.
  • Bulk and project packaging options available upon request.
  • Q1: Where is the F30000E best used?
    A: In central RO product water lines, ETP/STP high-capacity discharge, cooling tower mains, and water utility distribution where bulk flow needs accurate visual monitoring.
  • Q2: Is it recommended for 24/7 usage?
    A: Yes. It is built for continuous-duty industrial applications and handles high throughput reliably within rated pressure and temperature.
  • Q3: Is visibility an issue at such high flow?
    A: Not at all. The extended polycarbonate body ensures clear float travel even near full-scale flow, making it easy for operators to monitor.
  • Q4: Does it support recalibration for other fluids?
    A: It is pre-calibrated for water. For fluids with different specific gravity, correction factors or separate calibration are required.
  • Individually packed in oversized cartons with internal shock protection.
  • External labeling with model, flow range, and nozzle size clearly printed.
  • Ships within 2 working days after order confirmation.
  • Available for delivery across India through heavy freight services.
  • Bulk and project packaging options available upon request.
  • Install vertically only with bottom inlet and top outlet.
  • Support inlet and outlet pipelines to avoid undue stress on the rotameter.
  • Do not exceed pressure or temperature ratings to ensure longevity.

Inspect monthly for scaling, visibility issues, or float sticking. Clean internally with soft water only. Avoid chemicals, acids, or abrasive tools that could degrade the polycarbonate body or calibrated sticker.

  • Large STP/ETP treated water discharge
  • RO/UF high-output systems
  • Industrial process cooling water lines
  • Municipal water pumping and distribution
