Aster Rotameter – 500–5000 LPH – 40 NB – SS316 Flanged

Aster Rotameter – 500–5000 LPH – 40 NB – SS316 Flanged

1 1

Aster Rotameter – 500–5000 LPH – 40 NB – SS316 Flanged

Aster Rotameter – 500–5000 LPH – 40 NB – SS316 Flanged

Rs. 15,899.00
Sale price Rs. 15,899.00 Rs. 16,999.00 (Save Rs. 1,100.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
Looking for a different Rotameter?
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

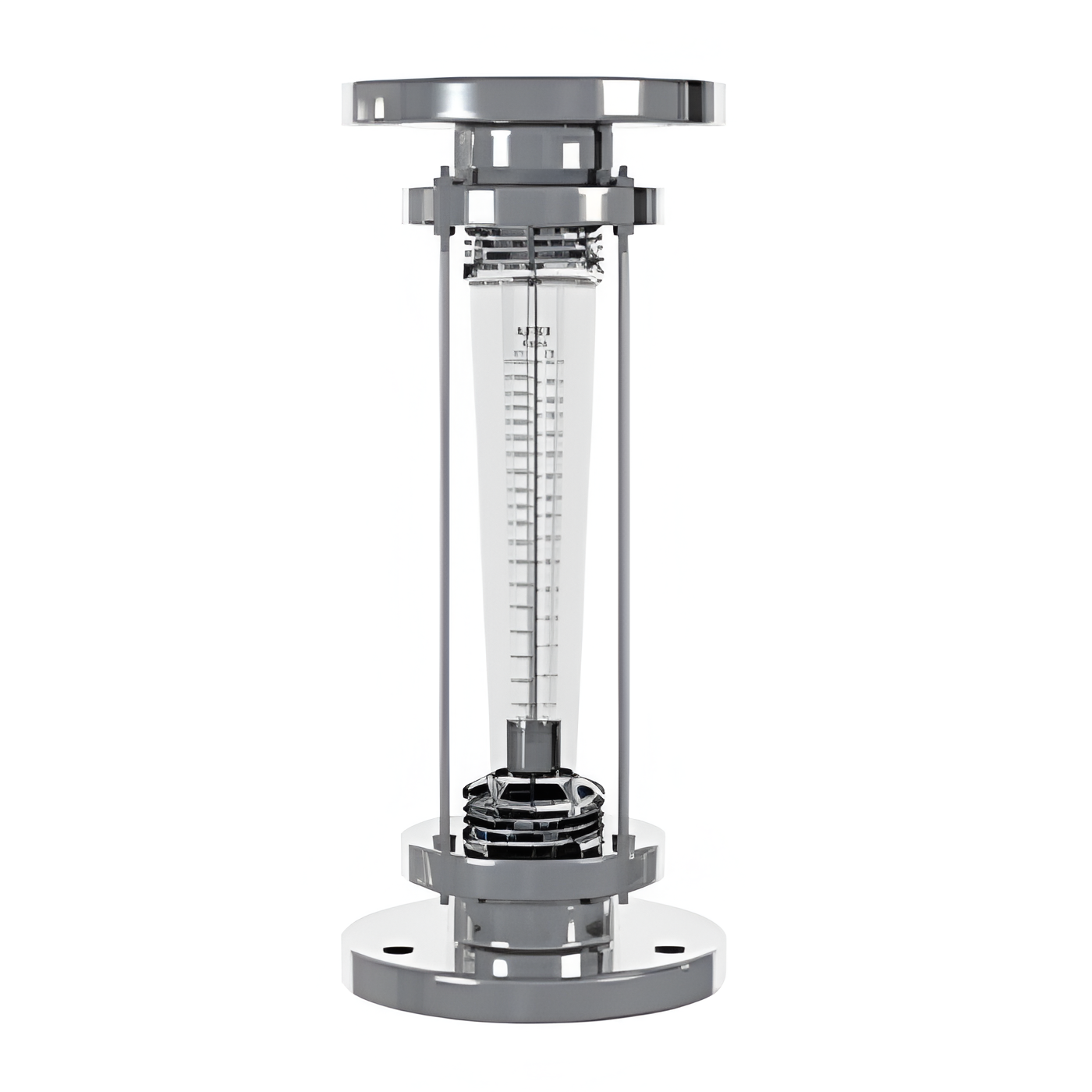

The Aster Rotameter – 500–5000 LPH – 40 NB – SS316 Flanged is a versatile mid-capacity flow meter engineered for precision and resilience in tough industrial conditions. Designed with SS316 flanged ends, this rotameter is ideal for monitoring water, chemicals, or other compatible liquids where superior mechanical strength and corrosion resistance are crucial.

Capable of handling flows up to 5000 LPH, this model features a transparent polycarbonate tube, SS316 float, and scale markings with excellent legibility. The 40 NB SS316 flanges ensure secure pipeline installation and are compatible with a wide range of chemical process and utility applications.

If you need a rugged, accurate, and chemically resistant rotameter for your mid-range flow monitoring, the F5000 O is the ideal choice.

  • Flow range from 500 to 5000 LPH
  • Heavy-duty SS316 flanged end construction
  • Highly visible, tamper-proof flow scale

Key features

    • Fluid: Water or chemical-compatible liquids
    • S.G. Of Medium: 1
    • Max. Operating Pressure: 6 kg/cm²
    • Max. Operating Temperature: 70°C
    • Accuracy: ± 2% of FS
    • Scale Graduation: LPH
    • End Connection: 40 NB SS316 Flanged
    • Configuration – Inlet: Bottom
    • Configuration – Outlet: Top
    • Mounting: Online Vertical
    • Scale Sticker: Tamper Proof
    • Float: SS316
    • Body Material: Polycarbonate
    • End Flange Material: SS316
  • Model: F5000 O
  • Flow Range: 500–5000 LPH
  • Least Count: 500 LPH
  • Nozzle Size: 40 NB
  • Mounting Type: Online Mounted
  • Connection Type: SS316 Flanged
  • Flange Dimensions (X × D × H): 120 × 80 × 385 mm
  • Distance Between Flanges (A): 80 mm

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • Dispatches within 2 working days of confirmed order
  • Bulk shipping available with secure crating for large projects
  • Available for both domestic and international orders
  • Q1: Is it suitable for alkaline or acidic media?
    A: Yes, the SS316 flanges and float ensure good compatibility with most mild acids and alkalis. Always verify chemical resistance for your specific fluid.
  • Q2: Can this be used for non-water-based chemicals?
    A: Yes, provided the specific gravity is near 1 or a correction factor is applied. Calibration is based on water.
  • Q3: Can I install this in an outdoor exposed environment?
    A: Yes, though it is advised to provide UV shielding to protect the polycarbonate tube over long-term use.
  • Q4: How often should it be cleaned?
    A: Monthly inspections are recommended, especially in systems prone to scaling or suspended solids.
  • Individually boxed with foam inserts and model identification
  • Corrosion-resistant packaging suitable for export
  • Optional test certificates included upon request
  • Dispatches within 2 working days of confirmed order
  • Bulk shipping available with secure crating for large projects
  • Available for both domestic and international orders
  • Install vertically with inlet at bottom, outlet at top
  • Do not use for gases or slurries
  • Use appropriate flange gaskets and torque settings

Flush the rotameter monthly or as needed. Clean with non-abrasive, chemically compatible fluids only. Remove scale or debris carefully to avoid scratching the scale or float surface.

  • RO inlet and outlet flow monitoring
  • Chemical transfer and treatment skids
  • Cooling tower dosing systems
  • Effluent polishing and tertiary treatment lines
