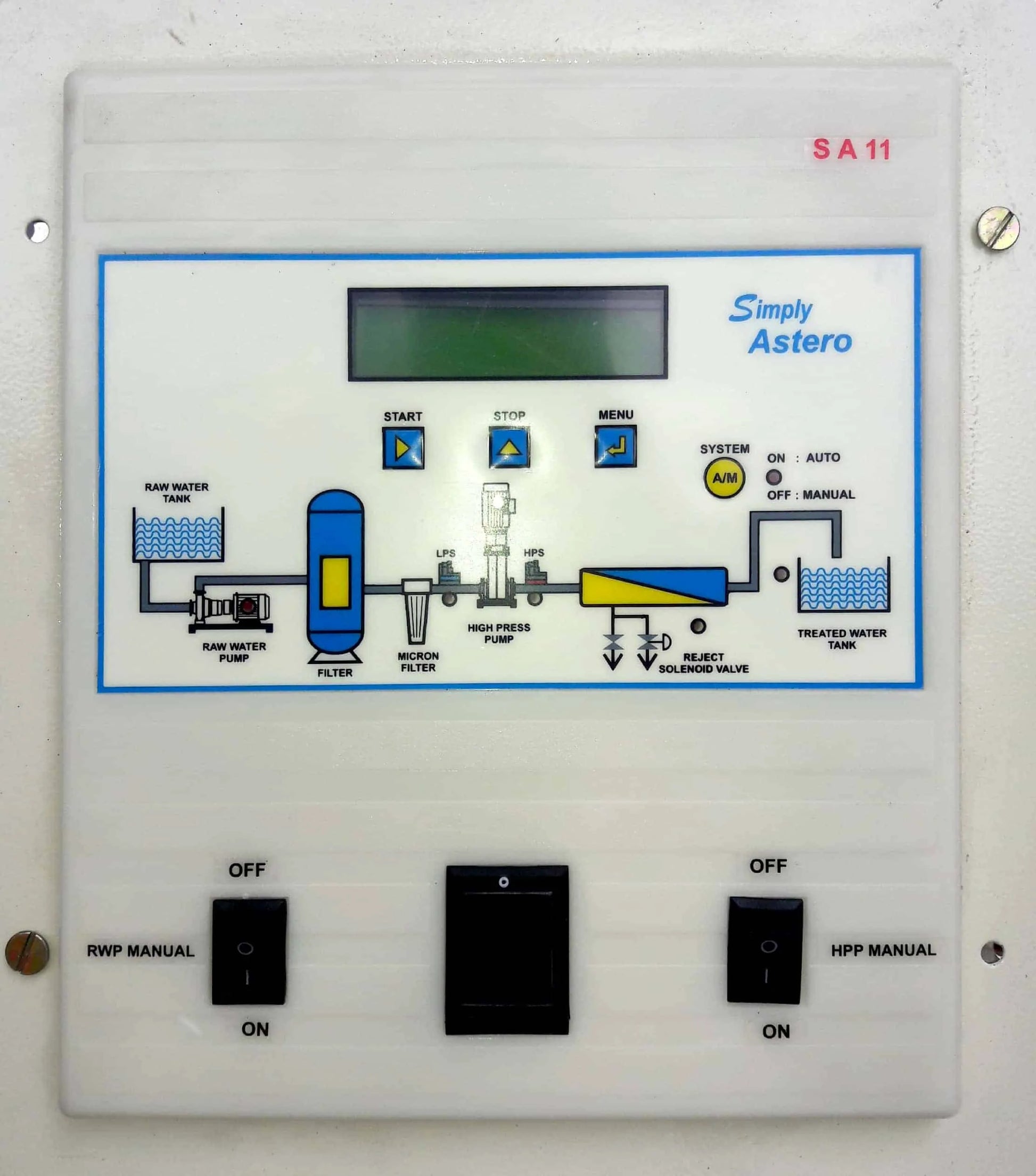

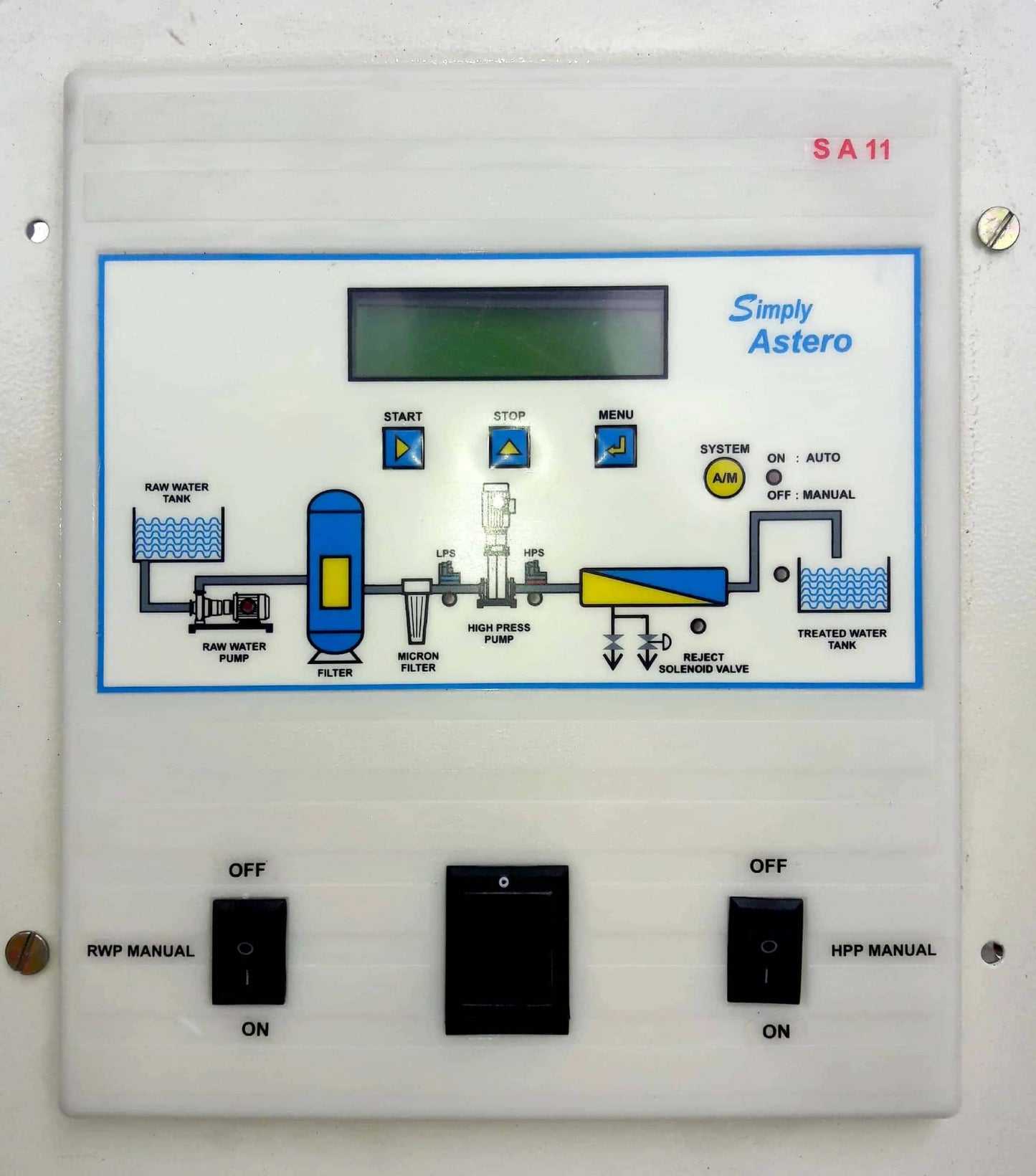

DescriptionFeaturesComplete RO Logic PreprogrammedMimic Diagram with 6 LED’s for I/O Indication16 X 2 Alphanumeric LCD Display with Keypad for ProgrammingAuto/ Manual Facility (even in MANUAL mode, the motor protection doesn’t get bypassed)Automatically Flushes the Membrane during Starting, Stopping & after a set intervalTakes care of required motor protection such as Overload, Single Phasing, Dry RunningTwo separate Rocker Switches to switch OFF/ON Raw Water and High Pressure Pump in manual modeBigger Terminals for PowerPressfit Connector for Control Terminals for ease of wiringPower and Control termination at different locationIn built operation hour counterIn built Conductivity/TDS Indicator with tripping facility @High Conductivity/TDSPassword Protected Settings

Model:: A1 1-1
Brand:: Infinity
Output for RWP: Single Phase -( 0.5 KW )
Output for HPP: Single Phase - ( 1.5 HP )
RWT: Raw water Tank Floaty
TWT: Treated Water Tank Floaty
INPUT CONNECTION: (RWT) ,(TWT) ,(LP) Low Pressure Switch(HP)High Pressure Switch
OUTPUT CONNECTION: (RWP) Raw Water Pump(HPP) High Pressure Pump(FSV) Flushing Solenoid Valve(DP) Dosing pump
TRIPPING: Low Pressure Tripping,High Pressure Tripping
RAW Water Tank: Low Level Tripping
Treated Water Tank: High Level Tripping
Warranty: One year Against Manufacturing defects
