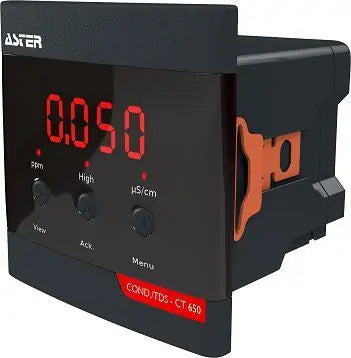

DescriptionProduct Specification for “Aster Conductivity Meter,CT 650”ApplicationIndication and controller with high relay set point.,Single / dual sensor as per requirement.,Current / printer outputDimension96 x 96 x 150mm 92 x 92mm(panel cut out)Display4 digit LED 7 SEGMENTMeasurement Range0.0 to 500 µs/cm(higher ranges optional)ModelCT 650Power Supply230 VAC +/-15% /3 VASpecificationsParameter Sampling Rate- 2 seconds, Calliberation -Using Front keypad,Terminals -Sensor screwed type (on pcb) Mains -3-core mains chord through gland.Temperature0-60 degree CAccuracy+/- 2% of FSDDisplay4 digit LED 7 SEGMENTKey FeaturesSensor provided with proper housing and tee ensuring rigid handling of the sensor. Unique IP 65 enclosurePanel/field mounted. Stable response, independent of flow. Battery powered.Traceability to ERTL/NABL standards. Easy calibration using front keys.Automatic range selection by the processor enabling complete interchangeability.Individual set point based relay operation. Alam acknowledgement facility.Programmable control delay. 4-20ma output from meter for your applications. (optional)Resolution0.01 to 1 depending on range with auto ranging

Parameter: TDS & Conductivity
Model: CT 650
Range: 0.0 to 500 µs/cm
Display: 4 digit LED 7 SEGMENT
Power: 230 VAC +/-15% /3 VA
Accuracy: +/- 2% of FSD
Temperature: 0-60 degree C
