edose NEO Dosing Pump – PVDF

edose NEO Dosing Pump – PVDF

1 2

Only 10 left in stock!

edose NEO Dosing Pump – PVDF

edose NEO Dosing Pump – PVDF

Rs. 8,499.00
Sale price Rs. 8,499.00 Rs. 10,200.00 (Save Rs. 1,701.00) Offer valid till 28th Dec
Sold out
View bulk discounts
Minimum Quantity of Same Variant Discount
5 5%
10 10%
25+ 12.5%

(Check item availability in your area)
View full details
  • Ships within 1-2 business days
  • 10 days replacement
  • Trusted by Professionals
  • Top brand

Payment options

Credit & Debit Cards – Accept all major cards (Visa, MasterCard, RuPay, American Express).

UPI & QR Payments – Google Pay, PhonePe, Paytm, BHIM UPI, and other UPI apps.

  • Product Description
  • Specifications
  • Reviews
  • FAQs
  • Packaging Details
  • Shipping Instructions
  • Safety Information
  • Maintenance & Warranty
  • Usage & Applications

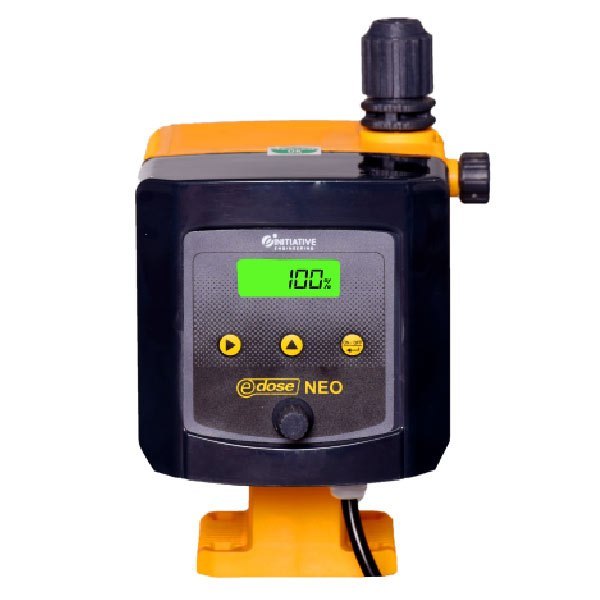

The edose NEO PVDF Dosing Pump is designed for sulphuric acid and harsh chemical dosing applications. Featuring a backlit LCD display, digital frequency control, and a solid PTFE diaphragm, it ensures accurate and long-lasting dosing performance.

Key features

    • 📟 Backlit LCD Display: Real-time dosing frequency monitoring.
    • 🎛️ User-Friendly Digital Knob: Adjustable dosing with password lock for security.
    • 🛠️ Easy Maintenance: Front-positioned dosing head for quick access.
    • 🔄 Built-in Air Release Valve (ARV): Prevents chemical spills and enhances safety.
    • 🛡️ Double Ball NRV with PTFE Seals: Prevents backflow and ensures precise dosing.
    • ⚙️ PTFE Diaphragm: Ensures extended life and chemical resistance.
    • ⏳ Batch & Interval Dosing: Automated dosing for controlled chemical injection.
    • 🔌 Auto Resetting Fuse: Protects against electrical fluctuations.
    • 🌊 IP65 Rated: Splash-proof and corrosion-resistant for harsh environments.
    • 📦 Compact & Lightweight: Easy to install and operate.
  • Model: edose NEO PVDF Dosing Pump
  • Dosing Rate @ 4 Kg/cm²: 6 LPH & 10 LPH
  • Suction/Discharge Tubing: 4/6 mm
  • Frequency: Up to 400 SPM
  • Electrical: 230V AC, 50Hz
  • Power Consumption (at 400 SPM): 30W

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
  • 📦 Handle with care to prevent damage during transit.
  • 🚚 Store in a dry, cool place before installation.
  • 📋 Inspect the package upon delivery and report any damages immediately.

Q1: What makes the edose NEO PVDF different from the standard model?

A: The PVDF model is designed specifically for sulphuric acid and harsh chemical dosing, offering high chemical resistance.

Q2: Can this pump handle continuous operation?

A: Yes, the edose NEO PVDF is built for continuous dosing with an IP65-rated enclosure.

Q3: How do I adjust the dosing rate?

A: The dosing rate can be adjusted using the digital knob with LCD display.

Q4: What is the power consumption?

A: The pump consumes 30W at maximum speed (400 SPM).

Q5: What chemicals can it handle?

A: It is suitable for sulphuric acid, hydrochloric acid, sodium hypochlorite, and other harsh chemicals.

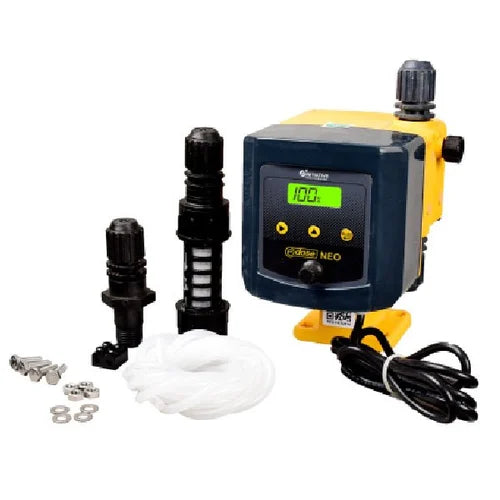

  • Box Contents: edose NEO PVDF Pump, Installation Kit, User Manual
  • Gross Weight: 4 Kg
  • Box Dimensions: L300 x W250 x H200 mm
  • 📦 Handle with care to prevent damage during transit.
  • 🚚 Store in a dry, cool place before installation.
  • 📋 Inspect the package upon delivery and report any damages immediately.
  • 📋 Use protective gloves when handling chemicals.
  • 🔌 Ensure proper grounding for electrical safety.
  • ⚙️ Regularly inspect tubing for leaks.
  • 🔄 Diaphragm Check: Inspect every 6–12 months.
  • 🧽 Cleaning: Regularly clean to prevent chemical buildup.
  • ⚙️ Electrical Inspection: Ensure no loose wiring.
  • 💧 Sulphuric Acid Dosing: Specialized for precise acid dosing applications.
  • 🏭 Acid Dosing in Water Treatment: Ideal for harsh chemical dosing.
  • 🧪 Industrial Chemical Processing: Ensures accurate and reliable dosing.
  • ⚗️ Laboratory & Pharmaceutical: Suitable for chemical handling.
