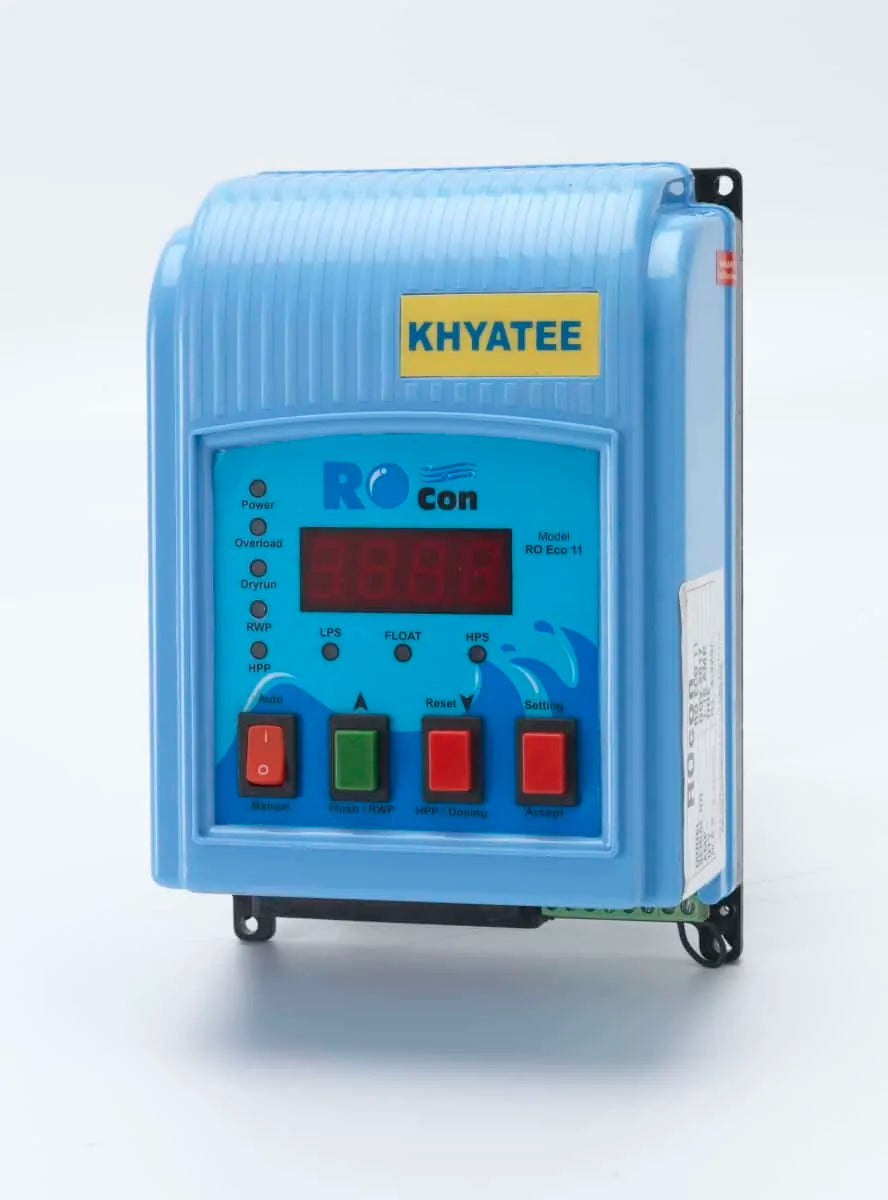

DescriptionRO CONTROL PANELRO Con panels are made with current sensing technology which provides auto fault detection for easy maintenance at site.KEY FEATURESMicrocontroller based software Technology.Complete RO logic pre-programmed.16X2 alphanumeric LCD with mimic diagram and 15LED for front stickers.4 Dome key based easy programming for more than 20 parameters.FeaturesCurrent range from 1-22 Amps.Supply for up to 2 HP for RWP and HPP.Protection from dry run & overload for RWP and HPP.Panel inputs from LPS, HPS & Float switch.Panel outputs to RWP, HPP & Dosing pump.Protection against extreme high current.Microcontroller based digital product with high reliability and long life.Compact, vermin proof, rust proof, ABS design.In Panel Calibration Options For Voltage, Ampere and Conductivity.

Input Voltage (AC): 200-300 VAC 50Hz
Current Supply range: 1-22 Amps
Overload: 1-22A wide range, default 4A for RWP and HPP
Dry run/ No load current: 1-22A wide range, default OFF HPP and RWP
RWP dry run trip time delay: 01-180 sec range, default 180 sec
RWP overload trip time delay: 01-30 sec range, default 15 sec
HPP dry run trip time delay: 01-180 sec range, default 180 sec
HPP overload trip time delay: 01-30 sec range, default 15 sec
HPP operation ON timer: 1-99 sec , default 15 sec
HPP operation OFF timer: 01-99 sec , default 15 sec
Dry run auto-start timer for RWP: 05-720 min, default OFF
Auto flushing valve on time: 05-100 sec, default 15 sec
Conductivity ignore time: 01-60 min, default 2 min
Power on timer: 01-300 sec range, default 60 sec
GSM log interval for android app: 01-720 min, default 60 min
Flush timer: 02-120 sec range, default 60 sec
Flush delay: 05-720 min range, default OFF
